ITT CANNON DBMM9W4S 9-Way Connectors
The DBMM9W4S is a 9-way solder receptacle connector in the Combo D series, designed with a black thermoplastic insulator and a zinc-plated steel shell. It supports wire gauges from 26 to 8 AWG, ensuring versatility for various applications. With a dielectric withstand voltage of 500VAC at sea level and an operating temperature range from -55°C to +150°C, it guarantees high reliability and durability. Suitable for industrial environments, it features a through-hole mounting method, providing secure attachment in demanding settings. Ideal for electrical and electronic assembly projects requiring robust and versatile connectors.
ITT CANNON DBMM9W4S 9-Way Connectors Specifications:
- Wire Gauge Range: 26-8 AWG
- Contact Arrangement: 9W4 (5 contacts size 20, 4 empty size 8 cavities)
- Dielectric Withstanding Voltage: 500VAC at sea level
- Current Rating Signal Contacts: 7.5A max
- Operating Temperature: -55°C to +150°C
- Shell Material: Steel with yellow chromate over zinc finish
- Insulator Material: Thermoplastic, UL 94V-0 rated
- Insulator Color: Black
- Mounting Method: Through hole, 3.05mm (120) diameter
- Salt Spray Test: 48 hours (96 hours for stainless steel)
- Gender: Socket

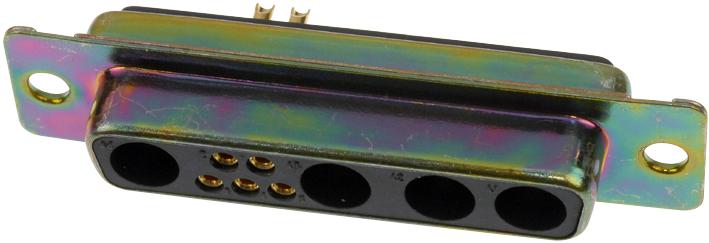

Buy the Buy Cannon Combo D Series DBMM9W4S Part Number DBMM9W4S Online
Secure your electrical connections with the high-quality Cannon Combo D SeriesDBMM9W4S solder receptacle connector. Made with a robust steel shell and a thermoplastic insulator, supporting wire gauges from 26 to 8 AWG, it is designed for demanding industrial environments. It withstands voltages up to 500VAC and operates in temperatures from -55°C to +150°C, ensuring safety and durability. Easy to install with through-hole mounting, it is ideal for reliable, long-lasting electronic and electrical applications. Purchase online now for quick delivery and superior quality.
Order your Cannon SeriesDBMM9W4S durable 9-way solder receptacle connector today and ensure reliable connections for your industrial projects.
Frequently Asked Questions
Where can I buy ITT CANNON DBMM9W4S?
You can click on the BUY or RFQ button to purchase DBMM9W4S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DBMM9W4S?
You can download the DBMM9W4S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DBMM9W4S?
ITT CANNON
