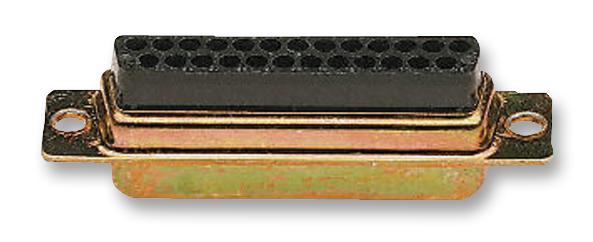

ITT-Cannon DBU25SA197FO D Sub Connector
The Cannon D*U series low-cost crimp connector features 25 contacts with a size 20 contact arrangement, designed for versatile electronic applications. Made with steel shell finished in tin/nickel and a black glass-filled thermoplastic insulator rated UL 94V-0, it supports wire gauges from AWG 18 to 30. Capable of withstanding up to 1000 VAC dielectric voltage and operating in temperatures between -55°C and +125°C, it ensures high durability. The connector offers 50 to 500 mating cycles, with a maximum current rating of 5 A, making it suitable for reliable, budget-conscious electronic connections.
ITT-Cannon DBU25SA197FO D Sub Connector Specifications:
- Wire Gauge Range: AWG 18-30
- Contact Arrangement: 25 contacts, size 20
- Shell Material: Steel with tin/nickel finish
- Insulator Material: Glass-filled thermoplastic, UL 94V-0
- Contact Material: Copper alloy, gold over nickel finish
- Contact Type: Stamped
- Mating Cycles: 50, 200, 500
- Dielectric Withstanding Voltage: 1000 VAC at sea level
- Current Rating: 5 A maximum
- Operating Temperature: -55°C to +125°C
- Mounting Method: 120-inch through hole
- Environmental Resistance: Salt spray test for 20 hours
Buy the Buy Cannon D*U Series Crimp Connector Part Number DBU25SA197FO Online
Purchase the Cannon D*U series low-cost crimp connector online today for efficient, durable, and cost-effective electronic connections. Featuring 25 contacts with a robust steel shell and thermoplastic insulator, this connector is designed to withstand harsh environments with temperatures from -55°C to +125°C. Its gold-plated contacts ensure excellent conductivity, while the high mating cycle count offers long-term reliability. Ideal for industrial and electronic applications, this connector supports wire gauges from AWG 18 to 30 and provides excellent electrical performance and easy crimp termination for fast installation.
Buy Cannon DBU25SA197FO crimp connector now and experience reliable, high-quality connections with excellent durability and ease of installation.
Frequently Asked Questions
Where can I buy ITT-Cannon DBU25SA197FO?
You can click on the BUY or RFQ button to purchase DBU25SA197FO from an authorized ITT-Cannon distributor.
How do I troubleshoot issues or seek technical support for part DBU25SA197FO?
You can download the DBU25SA197FO datasheet or visit the ITT-Cannon website for support.
Who is the manufacturer of DBU25SA197FO?
ITT-Cannon
