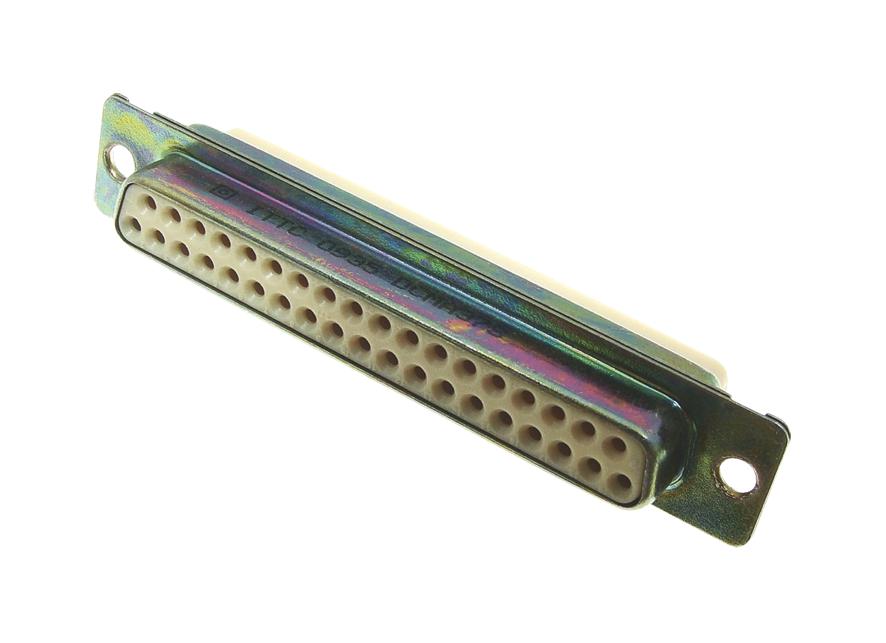

ITT CANNON DCM13W6SA197 Combination Connectors
The Combo D D*MM series is a set of combination D Subminiature connectors that combine multiple interconnect types into one fully shielded solution. Designed as an industry standard shielded I/O interconnect, these connectors offer the flexibility of customized options suitable for various applications. They are ideal for scenarios requiring space optimization and enhanced shielding, reducing EMI/RFI leakage by consolidating connections. Features include standard and European footprints, pre-installed 75/50 coaxial or high-power contacts, vertical standoffs or 90° brackets, options for 90° or straight PCB mounting, and compatibility with PC boards up to 3.2mm thick. Available with boardlocks or screw locks (such as #4-40 or M3), they support high voltages up to 2800 VAC, have a UL94V-0 flammability rating, and operate across a temperature range of -55°C to +125°C. Suitable for diverse applications including communications and networking, computing, automotive, mining, oil & gas, defense, aerospace, sensing, instrumentation, and industrial sectors.
ITT CANNON DCM13W6SA197 Combination Connectors Specifications:
- Flammability: UL 94V-0
- Temperature Range: -55°C to +125°C
- Signal Contact Current Rating: 7.5 A
- Signal Contact Resistance: 55 millivolts max at 7.5 A
- Dielectric Withstanding Voltage: 1250 VAC at Sea Level
- Coaxial Current Rating: 5 A
- Coaxial Dielectric Withstanding Voltage: 1000 VAC at Sea Level
- Coaxial Impedance: Less than 1.40 + .03F for Fup up to 1 GHz
- Coaxial VSWR: Less than 1.40 + .03F for Fup up to 1 GHz
- Coaxial Insertion Loss: 0.2 dB at 1 GHz
- High Power Current Rating: Up to 40 A
- High Voltage: 2800 VAC at Sea Level
- Materials: Shell - Carbon Steel Tin-Nickel / Chromate/Zinc; Copper Alloy gold over Nickel for contacts; Teflon for coax insulator;
- Finish: Tin, Gold over Nickel, Chromate, or Cadmium plated options
- Mounting: Vertical stand-offs or 90° brackets, PCB up to 3.2 mm
- Environmental: Suitable for industrial, military, aerospace, and telecom applications
