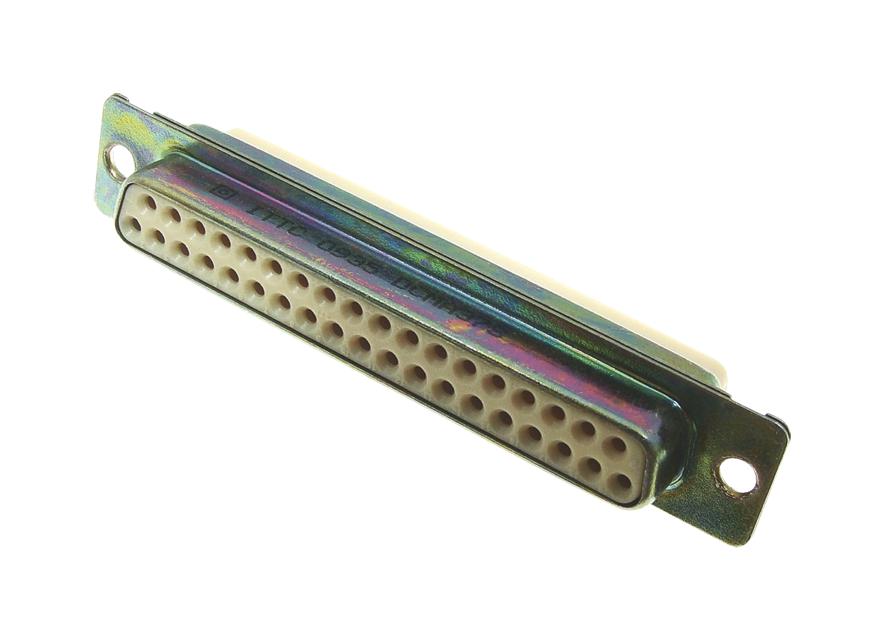

ITT CANNON DCMA37S High Reliability D-Sub Connector
The D*MA series D-Sub high-reliability connectors feature a crimp termination, robust steel shell with yellow chromate over zinc finish, and thermoplastic insulators rated UL 94V-0. Designed for demanding environments, they support 37 contacts of size 20 and are rated for 7.5 A maximum current with 10 milliohm contact resistance. These sockets withstand voltage up to 1000 VAC, operate in temperatures from -55°C to +125°C, and are tested for 24-hour salt spray. Ideal for industrial and aerospace applications requiring durable, high-performance connection solutions.
ITT CANNON DCMA37S High Reliability D-Sub Connector Specifications:
- Connection Type: Crimp
- Contact Arrangement: 37 contacts size 20
- Wire Gauge Range: AWG 20-28 (Standard), AWG 22-28 (High Density)
- Material: Steel shell with yellow chromate over zinc finish
- Contact Material: Copper alloy with gold over nickel finish
- Contact Resistance: 10 milli Ohm max
- Current Rating: 7.5 A maximum
- Dielectric Withstanding Voltage: 1000 VAC at sea level
- Operating Temperature: -55°C to +125°C
- Salt Spray Resistance: 24 hours
- Insulator Material: Thermoplastic UL 94V-0
- Hardware: 120 inches (3.05mm) through hole
Buy the Cannon Series D*MA High Reliability D-Sub: DCMA37S
Enhance your electronic connections with the Cannon D*MA series D-Sub high reliability connectors featuring 37 crimp contacts, a durable steel shell with yellow chromate finish, and gold over nickel contact surfaces. Suitable for applications requiring robust performance, these connectors support AWG 20-28 wire ranges, withstand up to 1000 VAC, and operate in temperatures from -55°C to +125°C. Ideal for industrial automation, aerospace, and military equipment, ensuring secure and reliable signal transmission in tough conditions.
Buy Cannon DCMA37S high-reliability D-Sub connectors now and experience unmatched durability and performance in demanding environments.
