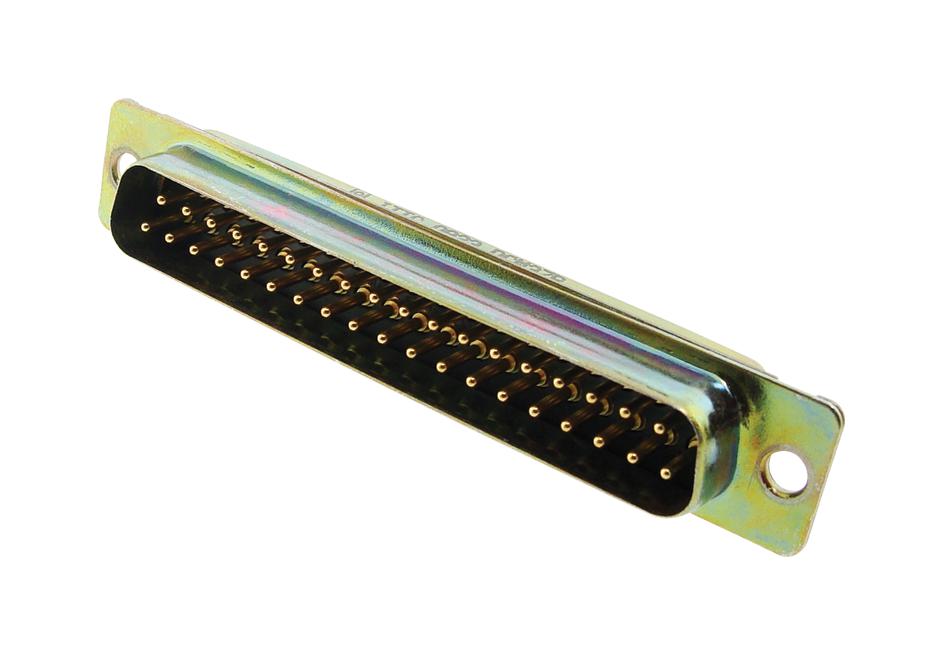

ITT CANNON DCMM37PD D-Sub Connector
The Cannon D*M series D-Sub connector features 37 contacts with a wire gauge range of AWG 20-28, providing reliable performance in industrial environments. Designed with a steel shell finished in yellow chromate over zinc, it withstands salt spray for up to 48 hours and operates at temperatures from -55°C to +150°C. The connector supports 500 mating cycles, with a maximum current of 7.5 A and contact resistance of 7.5 milliohm. It features right-angled PCB pin contacts made from copper alloy with gold over nickel finish, ensuring durability and signal integrity in industrial electronics.
ITT CANNON DCMM37PD D-Sub Connector Specifications:
- Contacts: 37, size 20
- Wire Gauge Range: AWG 20-28
- Mating Cycles: 500
- Dielectric Withstanding Voltage: 1000 VAC at sea level
- Current Rating: 7.5 A
- Contact Resistance: 7.5 milli Ohm max
- Operating Temperature: -55°C to +150°C
- Shell Material: Steel with yellow chromate over zinc finish
- Salt Spray Test: 48 hours (96 hours for stainless steel)
- Insulator Material: Thermoplastic, UL 94V-0
- Insulator Color: Black
- Contact Type: Right angled PCB
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel
- Hardware: 120 inch (3.05 mm) through hole
Buy the Cannon DCMM37PD – Reliable D-Subconnector for Industrial Applications
Enhance your industrial electronics with the high-quality Cannon D-Sub connector series. The DCMM37PD model offers 37 gold-plated contacts, a steel shell with corrosion-resistant finish, and robust features that withstand extreme temperatures from -55°C to +150°C. Designed for reliability, it provides 500 mating cycles, high salt spray resistance, and a current capacity of 7.5 A. Perfect for demanding industrial, aerospace, and military applications, this connector ensures durable, secure connections for your critical projects. Purchase online today for fast delivery and trusted quality.
Order your Cannon Series DCMM37PD today and give your projects the dependable quality they deserve for industrial and electronic connection needs.
Frequently Asked Questions
Where can I buy ITT CANNON DCMM37PD?
You can click on the BUY or RFQ button to purchase DCMM37PD from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DCMM37PD?
You can download the DCMM37PD datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DCMM37PD?
ITT CANNON
