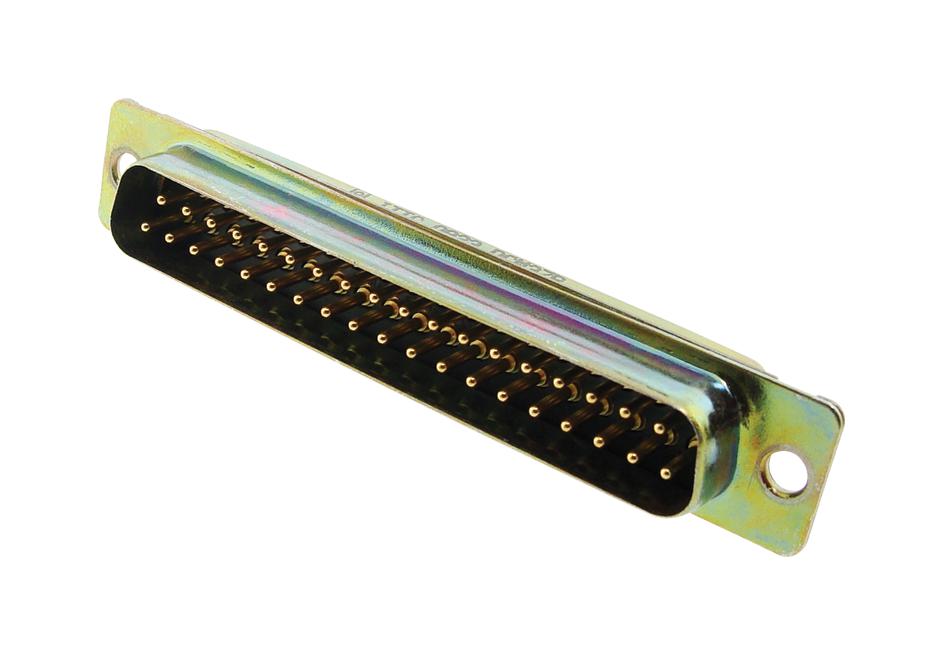

ITT CANNON DCMM37PM D-Sub Connector
The D*M high-reliability D-Sub connector features 37 contacts compatible with AWG 20-28, rated for 7.5 A, with a dielectric withstand voltage of 1000 VAC. Crafted from steel with yellow chromate over zinc finish and insulating thermoplastic contact, it withstands harsh environments with 48 hours salt spray resistance. Suitable for PCB pin use, it offers 500 mating cycles, operating temperature from -55°C to +150°C, and gold over nickel contact finish, ensuring durability and optimal electrical performance in demanding applications.
ITT CANNON DCMM37PM D-Sub Connector Specifications:
- Pin Count: 37 contacts
- Contact Material: Copper alloy with gold over nickel finish
- Wire Gauge Range: AWG 20-28
- Current Rating: 7.5 A max
- Dielectric Withstanding Voltage: 1000 VAC at sea level
- Operating Temperature: -55°C to +150°C
- Shell Material: Steel with yellow chromate over zinc finish
- Salt Spray Resistance: 48 hours (96 Hrs for stainless steel)
- Contact Resistance: 7.5 milli Ohm max
- Mating Cycles: 500
- Insulator Material: Thermoplastic UL 94V-0
- Gender: Pin, Straight PCB contact
- Hardware: 120 inch (3.05mm) through hole
- Insulator Color: Black
- Seam: Not specified
- Dimensions: Not specified
Buy the Buy Cannon D-Sub Part Number DCMM37PM Online
Secure your electronic projects with the high-reliability D-Sub Connector. Featuring 37 gold-plated contacts, a sturdy steel shell, and operating temperature up to 150°C, this connector offers durability, corrosion resistance, and excellent electrical performance. Ideal for PCB applications, with a current capacity of 7.5 A and 500 mating cycles, it is designed to withstand harsh environments, including salt spray resistance. Order online today to guarantee fast delivery and dependable connections for your industrial or electronic systems.
Order your Cannon Series D*M D-Sub connector DCMM37PM today and ensure reliable, high-performance connections in your demanding electronics projects.
Frequently Asked Questions
Where can I buy ITT CANNON DCMM37PM?
You can click on the BUY or RFQ button to purchase DCMM37PM from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DCMM37PM?
You can download the DCMM37PM datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DCMM37PM?
ITT CANNON
