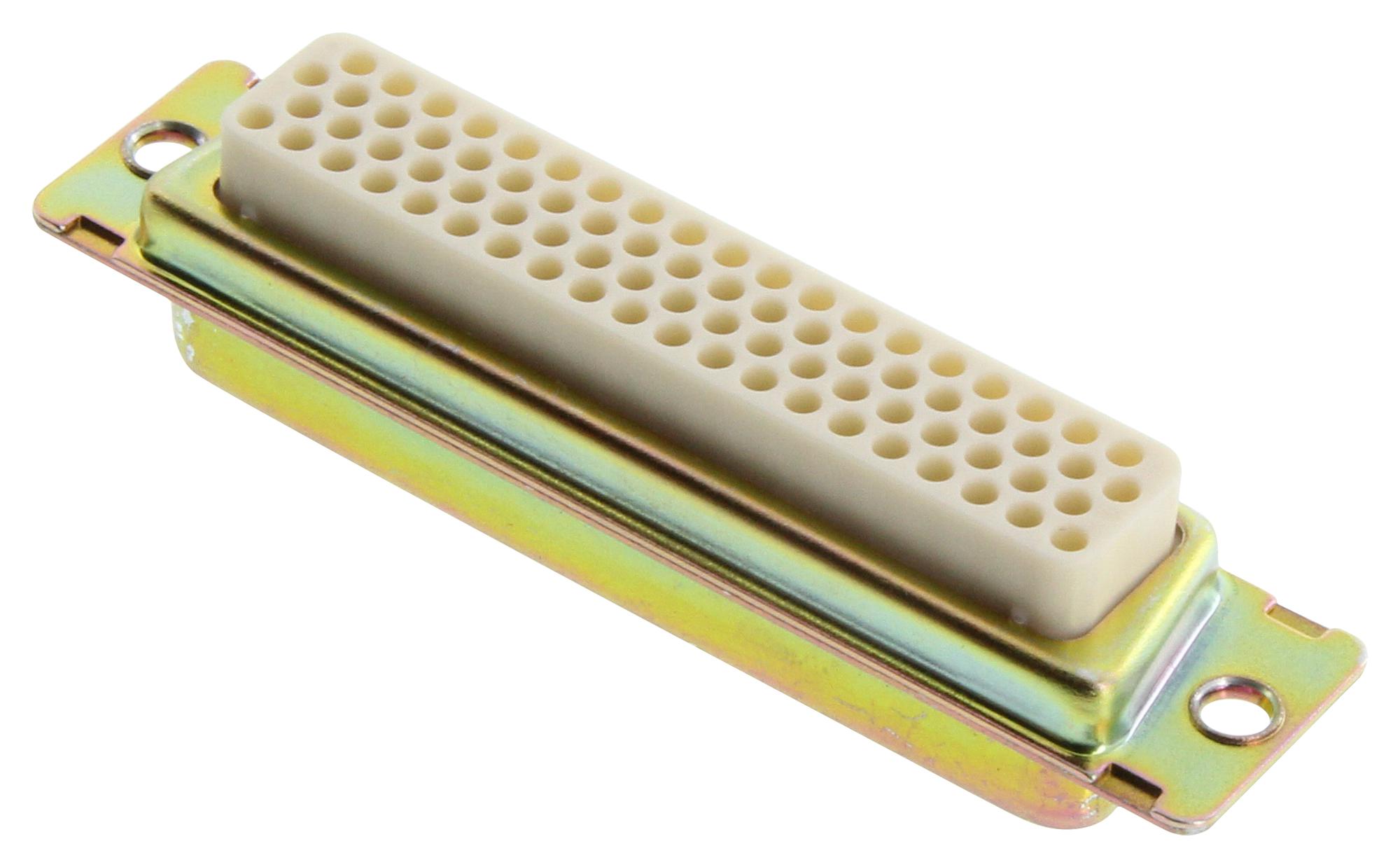

ITT CANNON DDMA78P High-Performance D-Sub Connectors
The D*MA series D-Sub connectors are high-reliability termination components designed with crimp contacts for secure electrical connections. Suitable for applications requiring up to 78 contacts with a size of 22, these connectors support a current load of 7.5 A max and feature a dielectric withstand voltage of 1000 VAC at sea level. Constructed from durable steel with a yellow chromate over zinc finish, they are rated for operating temperatures from -55°C to +125°C. The connectors are compatible with AWG 20-28 wire gauge, ensuring versatility in various wiring environments.
ITT CANNON DDMA78P High-Performance D-Sub Connectors Specifications:
- Contact Arrangement: 78 contacts, size 22
- Wire Gauge Range: AWG 20-28 (Standard), AWG 22-28 (High Density)
- Current Rating: 7.5 A max
- Dielectric Withstand Voltage: 1000 VAC at sea level
- Contact Resistance: 10 milli Ohm max
- Operating Temperature: -55°C to +125°C
- Shell Material: Steel
- Shell Finish: Yellow chromate over zinc
- Insulator Material: Thermoplastic, UL 94V-0
- Insulator Color: Black
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel
- Hardware: 120" (3.05 mm) through hole
- Mating Cycles: 200
Buy the Cannon Series D*MA D-Sub: DDMA78P
Purchase the Cannon D*MA series D-Sub connector with 78 contacts designed for durability and high reliability. Crafted from steel with a yellow chromate over zinc finish, it withstands harsh conditions and supports up to 7.5 A current. The connectors feature gold over nickel-plated copper alloy contacts for excellent conductivity and corrosion resistance. Suitable for wire gauges AWG 20-28, they operate effectively between -55°C and +125°C. Easy to install with a 120" through hole, ensuring secure, long-lasting connections in industrial and electronic applications.
Get Cannon D*MA DDMA78P today—built for high reliability, secure crimp connections, and durable performance in demanding environments.
Frequently Asked Questions
Where can I buy ITT CANNON DDMA78P?
You can click on the BUY or RFQ button to purchase DDMA78P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DDMA78P?
You can download the DDMA78P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DDMA78P?
ITT CANNON
