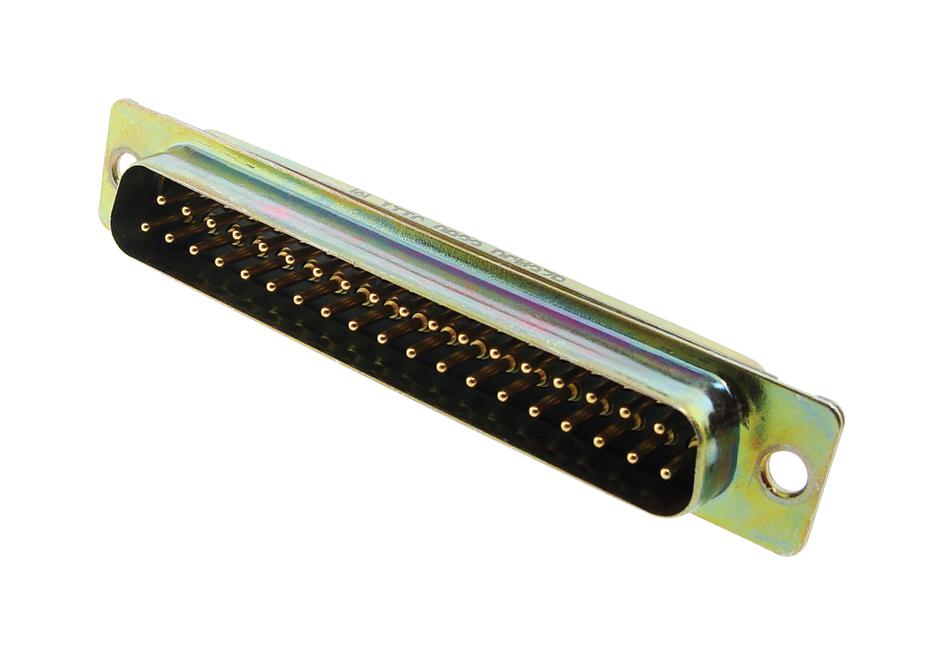

ITT CANNON DDMAM50P D-Sub Connector
The DDMAMS50P is a high-reliability D-Sub connector featuring 50 crimp contacts, suitable for rugged industrial and electronic applications. It offers a durable steel shell with yellow chromate over zinc finish for corrosion resistance, and a thermoplastic insulator in black with UL 94V-0 rating. Designed for wire gauge ranges from AWG 20-28, it supports up to 7.5 A current and withstands dielectric voltage up to 1000 VAC. The connector endure 500 mating cycles and operate reliably within -55°C to +150°C, making it ideal for harsh environments.
ITT CANNON DDMAM50P D-Sub Connector Specifications:
- Number of contacts: 50, size 20
- Shell Material: Steel with yellow chromate over zinc finish
- Contact Material: Copper alloy with gold over nickel finish
- Wire Gauge Range: AWG 20-28 (standard), AWG 22-28 (high density)
- Current Rating: 7.5 A maximum
- Dielectric Withstanding Voltage: 1000 VAC at sea level
- Contact Resistance: 10 milli Ohm max
- Operating Temperature: -55°C to +150°C
- Mating Cycles: 500
- Insulator Material: Thermoplastic, UL 94V-0
- Hardware: 120-inch (3.05mm) through hole
- Salt Spray Resistance: 48 hours (96 hours for stainless steel)
Buy the Cannon Series D*MA D-Sub Connector: DDMAMS50P
Enhance your electronic and industrial projects with the reliable Cannon D-Sub Connector featuring 50 crimp contacts and a sturdy steel shell. This high-quality connector with thermoplastic insulator and gold-plated contacts ensures durable and corrosion-resistant connections. Capable of withstanding 500 mating cycles and operating across a wide temperature range from -55°C to +150°C, it’s ideal for demanding environments. Order online today to secure this versatile and robust connector that guarantees performance and longevity for your application needs.
Order your Cannon Series D*MA DDMAMS50P today and give your projects the dependable quality they deserve with durable, high-performance D-Sub connectors.
