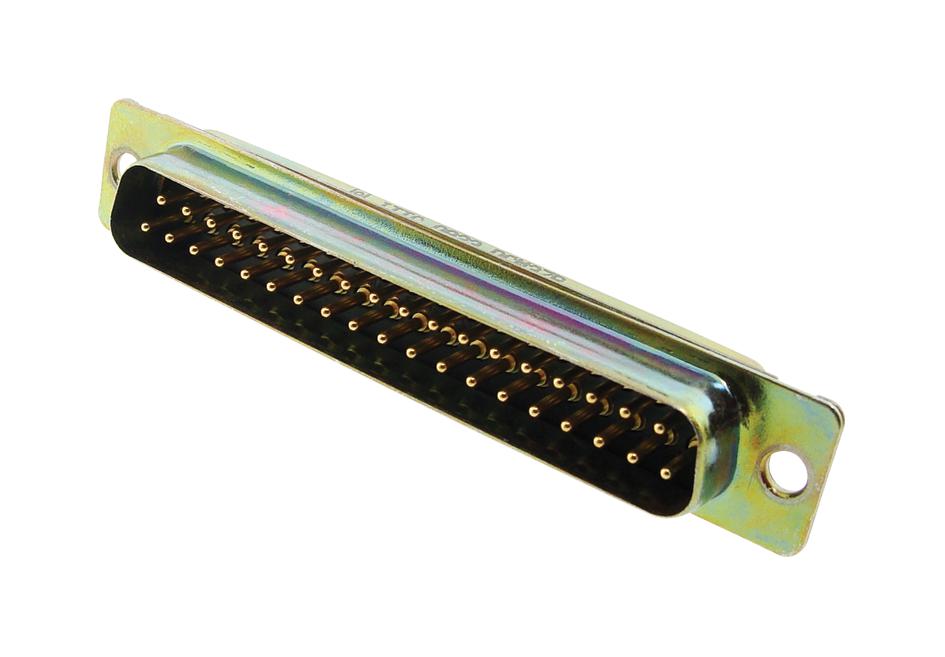

ITT CANNON DDMM36W4P D-Sub Connector
The Cannon Combo D series DDMM36W4P is a robust D-Subminiature connector offering 36 contact positions, including 32 size 20 and 4 empty size 8 cavities. It features a gold-over-nickel finish on copper alloy contacts for excellent conductivity and corrosion resistance, suitable for industrial applications. Designed for signal transmission, it supports a current rating of up to 7.5A per contact and withstands dielectric voltage of 500 VAC, with a rugged steel shell finished in yellow chromate over zinc. This connector is rated for 500 mating cycles and operates reliably at -55°C to +150°C, ideal for demanding environments.
ITT CANNON DDMM36W4P D-Sub Connector Specifications:
- Contact Arrangement: 36W4 (32 contacts size 20, 4 empty size 8 cavities)
- Wire Gauge Range: AWG 8-26
- Mating Cycles: 500
- Dielectric Withstanding Voltage: 500 VAC at sea level
- Current Rating Signal Contacts: 7.5 A max
- Contact Resistance: 10 milli Ohm max
- Operating Temperature: -55°C to +150°C
- Shell Material: Steel
- Shell Finish: Yellow chromate over zinc
- Insulator Material: Thermoplastic, UL 94V-0
- Insulator Color: Black
- Gender: Pin
- Contact Type: Solder pot
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel
- Mounting Method: 120'' (3.05 mm) Through Hole
- Certifications: Subject to change, datasheet specifications
Buy the Cannon DDMM36W4P – Reliable D-Sub Connector for Industrial Applications
Order the Cannon DDMM36W4P D-Sub connector online today and ensure secure, reliable connections for your industrial and automation systems. With a rugged steel shell finished in yellow chromate over zinc, this connector provides excellent corrosion resistance and durability. Designed for high performance, it supports 500 mating cycles, with gold-over-nickel contacts that guarantee low contact resistance and excellent conductivity. Ideal for applications requiring high voltage withstand, it operates reliably from -55°C to +150°C, making it an essential component for demanding industrial environments.
Buy Cannon DDMM36W4P now and experience unmatched reliability and performance in high-demand industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON DDMM36W4P?
You can click on the BUY or RFQ button to purchase DDMM36W4P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DDMM36W4P?
You can download the DDMM36W4P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DDMM36W4P?
ITT CANNON
