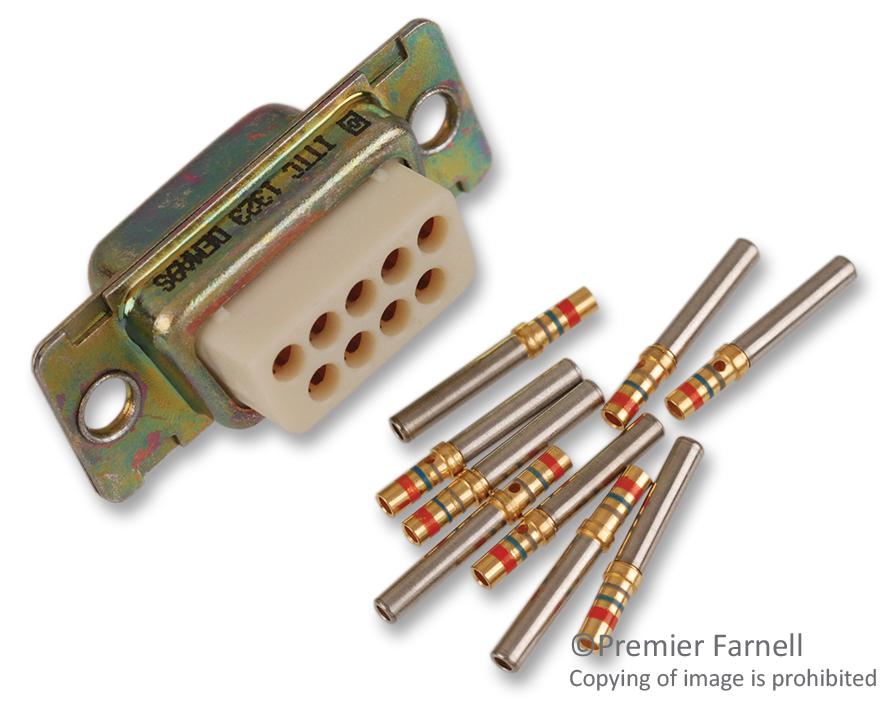

ITT CANNON DEMA9S 9-Position D-Sub Connector
The DEMA9S is a 9-position cable-mount D-Sub connector with crimp contacts, gold-plated copper contact material, and a robust steel shell with tin finish. Designed for high-reliability and demanding environments, it supports up to 200 mating cycles, has a current rating of 7.5A, and withstands voltages up to 1000VAC at sea level. Operating efficiently in temperatures from -55°C to +125°C, it features thermoplastic insulators rated UL94V-0, ensuring safety and durability. Ideal for industrial, military, and electronic equipment requiring secure, high-performance connections.
ITT CANNON DEMA9S 9-Position D-Sub Connector Specifications:
- Contact Arrangement: 9 contacts size 20
- Wire Gauge Range: AWG 20-28 (Standard), AWG 22-28 (High Density)
- Mating Cycles: 200
- Dielectric Withstanding Voltage: 1000 VAC at sea level
- Current Rating: 7.5 A
- Contact Resistance: 10 milli Ohm max
- Operating Temperature: -55°C to +125°C
- Shell Material: Steel
- Shell Finish: Tin
- Insulator Material: Thermoplastic UL 94V-0
- Gender: Socket
- Contact Type: Crimp
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel
- Hardware: 120-inch (3.05mm) Through Hole
Buy the Cannon Demaq9S – Reliable D-Sub Connector for Industrial Applications
Order the Cannon Demaq9S today for secure, reliable connections in industrial and military devices. Featuring gold-plated contacts, steel shell, and thermoplastic insulators, this connector supports up to 200 mating cycles and operates across a broad temperature range from -55°C to +125°C. Its rugged design ensures longevity in harsh environments, making it ideal for high-performance applications. Easily integrate into your systems with quick crimp termination and a current rating of 7.5A. Purchase now to enhance your equipment’s reliability and durability.
Get Cannon Demaq9S today—built for durability with high mating cycle capacity and exceptional thermal resistance.
Frequently Asked Questions
Where can I buy ITT CANNON DEMA9S?
You can click on the BUY or RFQ button to purchase DEMA9S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DEMA9S?
You can download the DEMA9S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DEMA9S?
ITT CANNON
