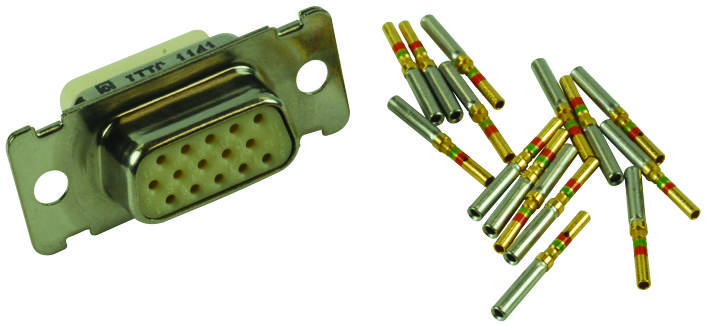

ITT CANNON DEMAM15SF225 D-Sub Connector
The D*MA series high-reliability D-Sub connector features crimp termination and a stainless steel shell for enhanced durability. Designed for industrial and electronic applications, it supports wire gauges from AWG 20 to 28, with high-density options for AWG 22–28. It offers 15 contact positions with a contact resistance of 10 milliohm max and a current capacity of 7.5 A. With a dielectric withstand voltage of 1000 VAC and an operating temperature range of -55° to +150°C, this connector ensures dependable performance in harsh environments. It features passivated stainless steel shells and gold-over-nickel contact finishes for reliable connectivity and corrosion resistance.
ITT CANNON DEMAM15SF225 D-Sub Connector Specifications:
- Wire Gauge Range: AWG 20-28 (Standard), AWG 22-28 (High Density)
- Mating Cycles: 500
- Contact Arrangement: 15 contacts, size 20 (Standard), 22 (High Density)
- Dielectric Withstanding Voltage: 1000 VAC at sea level
- Current Rating: 7.5 A maximum
- Contact Resistance: 10 milli Ohm max
- Operating Temperature: -55°C to +150°C
- Shell Material: Passivated stainless steel
- Shell Finish: Stainless steel shell
- Insulator Material: Thermoplastic, UL 94V-0
- Insulator Color: Black
- Contact Type: Crimp
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel (Performance Class 2)
- Hardware: 120-inch (3.05mm) Through Hole
Buy the Cannon DEMAM15SF225 – Reliable D-Sub Connectors for Industrial Applications
Experience dependable connectivity with the Cannon D-Sub Connector, featuring 15 crimp contacts, stainless steel shell, and gold-over-nickel finish for corrosion resistance. Ideal for industrial electronics, it supports wire gauges from AWG 20 to 28, with high-density options for smaller, compact designs. With 500 mating cycles, dielectric withstand voltage of 1000 VAC, and an operating range of -55°C to +150°C, this connector offers robust performance in harsh conditions. Suitable for demanding applications requiring long-lasting, secure connections.
Get Cannon DEMAM15SF225 today—built for high durability and reliable connectivity in demanding industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON DEMAM15SF225?
You can click on the BUY or RFQ button to purchase DEMAM15SF225 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DEMAM15SF225?
You can download the DEMAM15SF225 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DEMAM15SF225?
ITT CANNON
