ITT CANNON DEMAM9PF225 High-Reliability D-Sub Connector
The D*M high-reliability D-Sub connector with crimp termination is designed for secure and durable electrical connections. It features a pin gender, 9 contact arrangement, and is made of passivated stainless steel shell for corrosion resistance. The thermoplastic insulator is UL 94V-0 rated, offering excellent insulation. Suitable for applications requiring up to 7.5A current, it withstands voltages up to 1000 VAC and operates in a temperature range of -55°C to +150°C. The connector endures 500 mating cycles and has a contact resistance of 10 milliohms, providing reliable performance in demanding environments.
ITT CANNON DEMAM9PF225 High-Reliability D-Sub Connector Specifications:
- Contact Arrangement: 9 contacts size 20
- Wire Gauge Range: AWG 20-28 (standard), AWG 22-28 (high density)
- Current Rating: 7.5 A maximum
- Dielectric Withstanding Voltage: 1000 VAC at sea level
- Operating Temperature: -55°C to +150°C
- Shell Material: Passivated stainless steel
- Shell Finish: Stainless steel shell
- Insulator Material: Thermoplastic, UL 94V-0 rated
- Insulator Color: Black
- Contact Type: Crimp
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel (Performance Class 2)
- Mating Cycles: 500
- Hardware: 3.05mm through hole
- Salt Spray Test: 48 hours (96 hours for stainless steel)

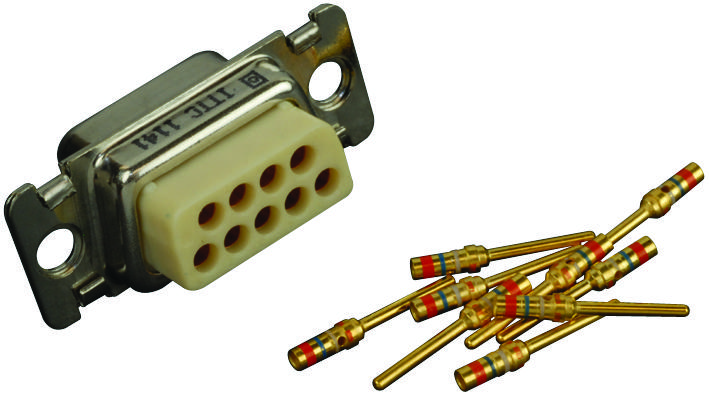

Buy the Buy Cannon D-Sub Part Number DEMAM9PF225 Online
Purchase Cannon high-reliability D-Sub connector DEMAM9PF225 online for secure, durable, and corrosion-resistant connections ideal for demanding industrial applications. This robust pin connector features a stainless steel shell, gold over nickel contacts, and thermoplastic insulator for excellent insulation and longevity. Designed for a maximum current of 7.5A and voltage of 1000VAC, it withstands 500 mating cycles and extreme temperatures from -55°C to +150°C. Perfect for engineers seeking reliable, high-performance electrical connectors in harsh environments.
Get Cannon DEMAM9PF225 today—built for high reliability, corrosion resistance, and secure electrical connections.
Frequently Asked Questions
Where can I buy ITT CANNON DEMAM9PF225?
You can click on the BUY or RFQ button to purchase DEMAM9PF225 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DEMAM9PF225?
You can download the DEMAM9PF225 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DEMAM9PF225?
ITT CANNON
