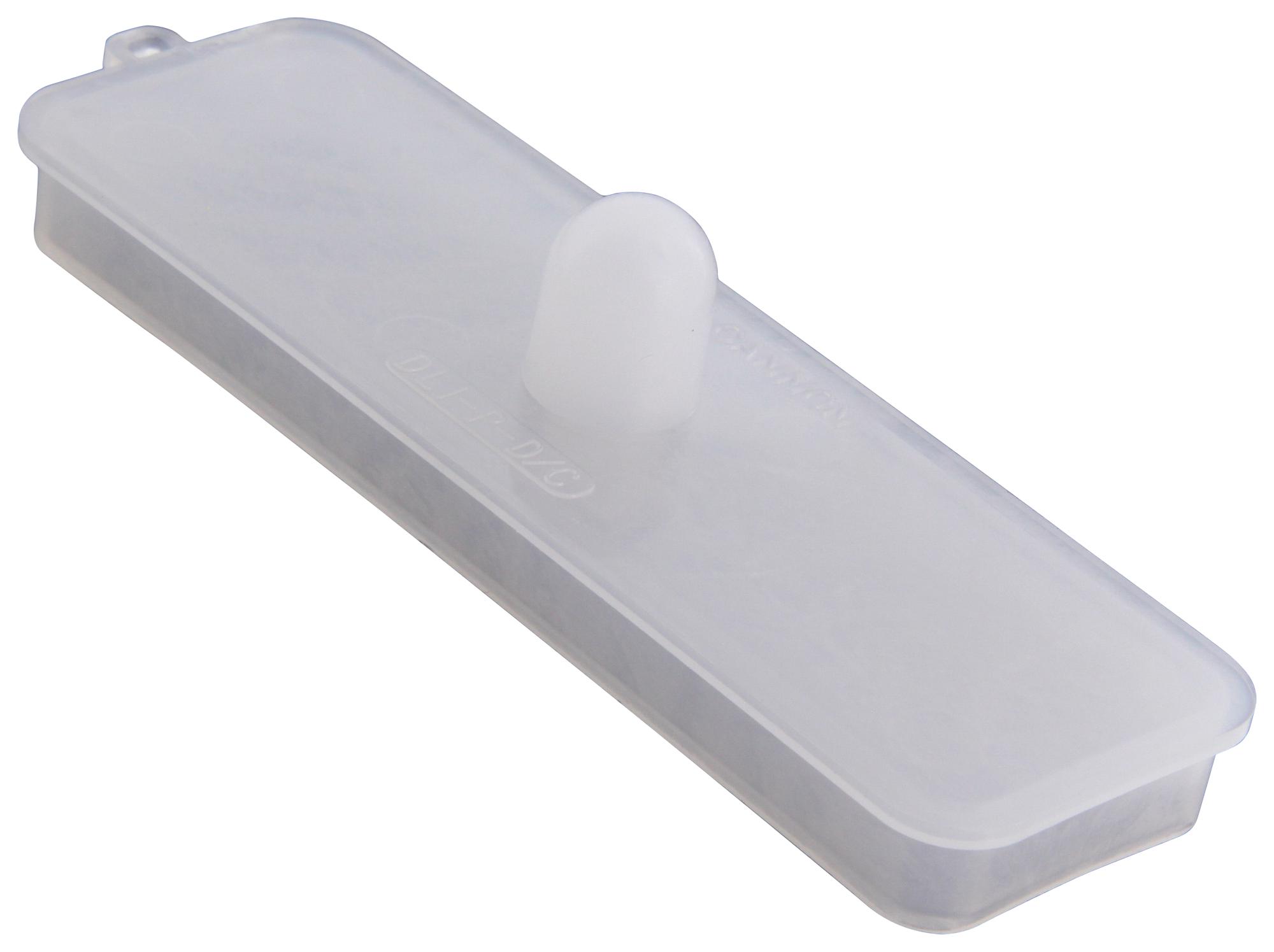

ITT CANNON DL1PDC High-Density ZIF Connector
The DL series high-density zero-insertion force (ZIF) connectors by ITT Cannon feature 60, 96, and 156 contact variants, ideal for medical, test, industrial, entertainment, telecommunication, and transportation applications. With a durable metal housing, EMI/RFI shielding, and long mating cycle life of at least 10,000 cycles, these connectors support up to 60 to 2496 contacts. They offer versatile termination options, low contact resistance, and reliable contact wiping for digital and low-current circuits, ensuring high performance and easy mating for demanding environments.
ITT CANNON DL1PDC High-Density ZIF Connector Specifications:
- Contact Count: 60, 96, 156, 260, 360, 624, 1248, 2496
- Operating Temperature: -55°C to 105°C (DL4 -55°C to 71°C)
- Mating Cycles: Minimum 10,000 (DL series), 20,000 (DL4)
- Material: Glass-filled thermoplastic, aluminum alloy, nickel-plated housing
- Contact Material: Copper alloy with gold or tin lead plating
- Electrical Ratings: 1200 Vac RMS; 5 to 60 Amps depending on contact type and configuration
- Wire Range: 32 AWG to 18 AWG, various termination options including crimp and solder
- Dimensions: Vary by model, detailed specifications available in datasheets
- Shielding: Nickel-plated aluminum housing, EMI/RFI shielded
- Contact Resistance: Maximum 20 milliohms
- Insulation Resistance: Minimum 5000 megohms
- Temperature Range: -55°C to 105°C
- Durability: Over 10,000 mating cycles
- Certifications: UL94V1, UL94V0 materials
Buy the ITT Cannon Series DL High-Density ZIF Connectors: DL1PDC
Enhance your device assembly with the versatile ITT Cannon high-density ZIF connectors. Designed for high reliability, these connectors feature EMI shielding, support up to 2496 contacts, and are suitable for medical, industrial, entertainment, and telecommunication applications. With a long lifespan of over 10,000 mating cycles and various termination options, they ensure secure and consistent connections. Ideal for testing, automation, and high pin count requirements, these connectors help streamline assembly and improve operational durability. Purchase online today for high-quality, dependable connections that meet rigorous industry standards.
Order your ITT Cannon Series DL high-density ZIF connector today and ensure reliable, high-performance connections for medical, industrial, and entertainment systems.
Frequently Asked Questions
Where can I buy ITT CANNON DL1PDC?
You can click on the BUY or RFQ button to purchase DL1PDC from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DL1PDC?
You can download the DL1PDC datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DL1PDC?
ITT CANNON
