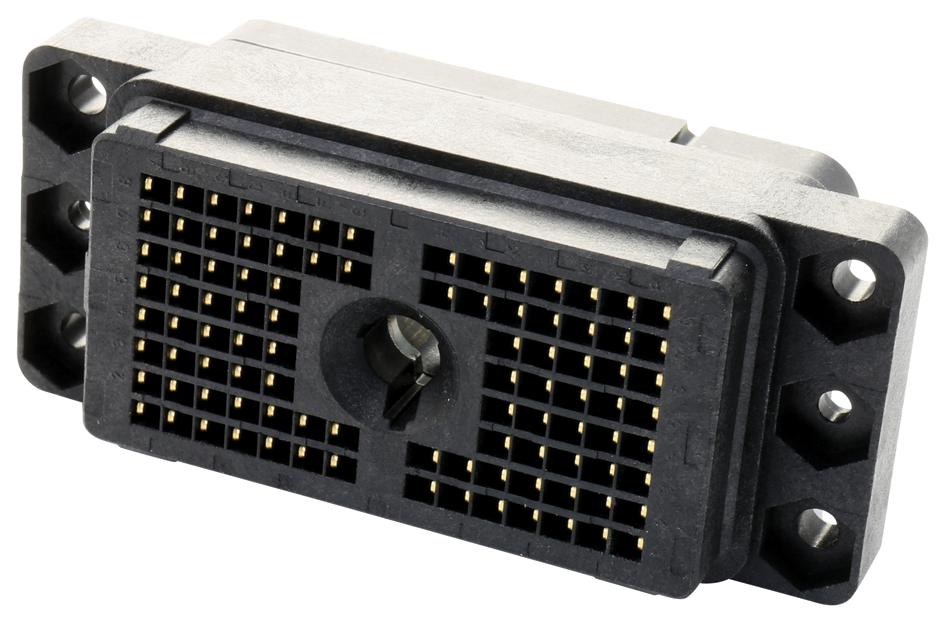

ITT CANNON DL296RW4B High-Density ZIF Connector
The DL296RW4B is a 260-pin ZIF connector featuring a plastic body and square post contacts, designed for high-density signal and power applications. It offers reliable performance with a rated lifespan of over 10,000 mating cycles, ensuring durability for demanding industrial and medical equipment. The connector's front-removable square posts, precise contact cavity arrangement, and compatibility with separate crimp contacts make it versatile for automated or manual termination. Its robust construction with UL-rated thermoplastic housing guarantees safety and long-term stability in various operational environments.
ITT CANNON DL296RW4B High-Density ZIF Connector Specifications:
- Pin Count: 260 pins
- Housing Material: UL 94V-1 rated thermoplastic
- Housing Color: Black
- Contact Material: Copper alloy with gold over nickel plating
- Contact Finish: Gold flash over nickel
- Contact Type: Crimp contacts (order separately)
- Removable Posts: Square, 0.64 mm (.025) thickness, 2.54 mm (0.100) center to center
- Mating Life: Over 10,000 cycles
- Dimensions: Length 100.03 mm (3.938 inches), Width 92.26 mm (3.631 inches)
- Operating Environment: Suitable for industrial and medical applications
- Mounting: Panel cutout pattern detailed on page 65
- Actuating Handle: Sold separately
Buy the Cannon Series DL5 260 Pin ZIF Connector: DL296RW4B
Get your Cannon Series DL296RW4B 260-pin ZIF connector online now. This reliable, high-performance connector with gold-plated contacts and removable square posts guarantees durability in medical, industrial, and high-density signal applications. Its robust thermoplastic housing provides safety and long-term stability. Perfect for automation, test equipment, and complex electronics requiring high cycle life, you can trust this connector for precise, dependable connections in demanding environments. Purchase today and enhance your project's reliability and efficiency.
Order your Cannon Series DL296RW4B high-density ZIF connector today and ensure reliable, durable connections for your industrial and medical projects.
Frequently Asked Questions
Where can I buy ITT CANNON DL296RW4B?
You can click on the BUY or RFQ button to purchase DL296RW4B from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DL296RW4B?
You can download the DL296RW4B datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DL296RW4B?
ITT CANNON
