ITT CANNON DL296RW6B High-Density ZIF Connector
The DL2-96RW6B is a high-density, shielded ZIF connector designed for industrial, medical, and test equipment applications. It features a rugged nickel-plated aluminum housing, a contact resistance of maximum 20 milliohms, and supports 96 circuits with a current rating up to 20 Amps. The connector offers high durability with a minimum of 10,000 mating cycles, and is available in shielded and non-shielded versions with gold-plated contacts for reliable signal integrity in digital and low-current applications. It is suitable for automation, robotics, medical devices, and testing systems, ensuring quick, force-free mating and high pin count configurations.
ITT CANNON DL296RW6B High-Density ZIF Connector Specifications:
- Number of Circuits: 96
- Contact Resistance: Maximum 20 milliohms
- Current Rating: 20 Amps maximum
- Operating Temperature: -55°C to 71°C for shielded version
- Mating Cycles: Minimum 10,000
- Housing Material: Nickel-plated aluminum alloy
- Contact Plating: Gold over nickel or tin-lead as applicable
- Support for wire sizes: 20 to 18 AWG, insulation diameter maximum 0.160 inches (4.06mm)
- Electrical Rating: 750 Vac RMS (DL4 version), 1200 Vac RMS (Other versions)
- Contact Insertion: Hand-insertable, no tooling required
- Contact Retention Force: Minimum 8 lbs (35.6 N)

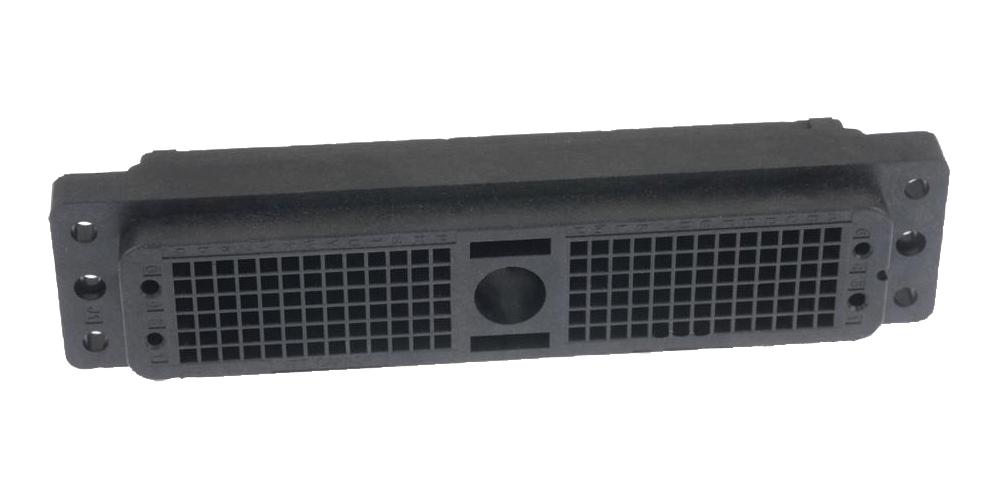

Buy the ITT Cannon DL2-96RW6B – Reliable Shielded ZIF Connector for Industrial Applications
Purchase the ITT Cannon DL2-96RW6B online today—designed for effortless, force-free mating, high durability with at least 10,000 mating cycles, and reliable performance in medical, industrial, and testing environments. Suitable for high pin count setups, featuring gold-plated contacts, shielded aluminum housing, and support for wire sizes from 20 to 18 AWG. Ensure optimal signal integrity and ease of use in automation, robotics, and medical devices—order now for quick delivery and dependable operation.
Get ITT Cannon DL2-96RW6B today—built for precision and long-lasting durability in medical and test equipment.
Frequently Asked Questions
Where can I buy ITT CANNON DL296RW6B?
You can click on the BUY or RFQ button to purchase DL296RW6B from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DL296RW6B?
You can download the DL296RW6B datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DL296RW6B?
ITT CANNON
