ITT CANNON DL5260RW6B high-density power signal connector
The DL5260RW6B is a high-performance zero insertion force connector designed for reliable power and signal transmission in industrial, aerospace, and computing applications. Featuring a rugged metal housing with gold-plated contacts, it supports up to 260 contacts with quick mate/unmate capabilities. The connector ensures durability for over 20,000 mating cycles, providing excellent EMI/RFI shielding options with accessories like backshells and polarizing posts. Suitable for high-density, cost-effective interconnect solutions requiring quick assembly and disassembly in demanding environments.
ITT CANNON DL5260RW6B high-density power signal connector Specifications:
- Contact Count: 260 pins
- Housing Material: Nickel-plated aluminum alloy
- Contact Material: Copper alloy with gold over nickel finish
- Contact Termination: Crimp, Square Post, PC/RC options
- Contact Plating: 50 microns gold over nickel
- Dielectric Withstanding Voltage: 1200 VAC RMS (Crimp/Square Post), 750 VAC RMS (DL4)
- Operating Temperature Range: -55°C to 105°C
- Durability: Minimum 20,000 mating cycles
- Current Rating: Up to 60 A with Buss contacts
- Contact Resistance: Max 30 mΩ (PC/RC), Max 15 mΩ (Crimp/Square Post)
- Insulation Resistance: Min 5000 MΩ
- Contact Spacing: 2.54 mm (.100 inches)
- EMI/RFI Shielding: Supported with optional accessories
- Physical Dimensions: Refer to detailed datasheet for exact size
- Availability of accessories: backshells, polarizing posts, protective covers
- Mechanical and electrical specifications are compliant with industry standards

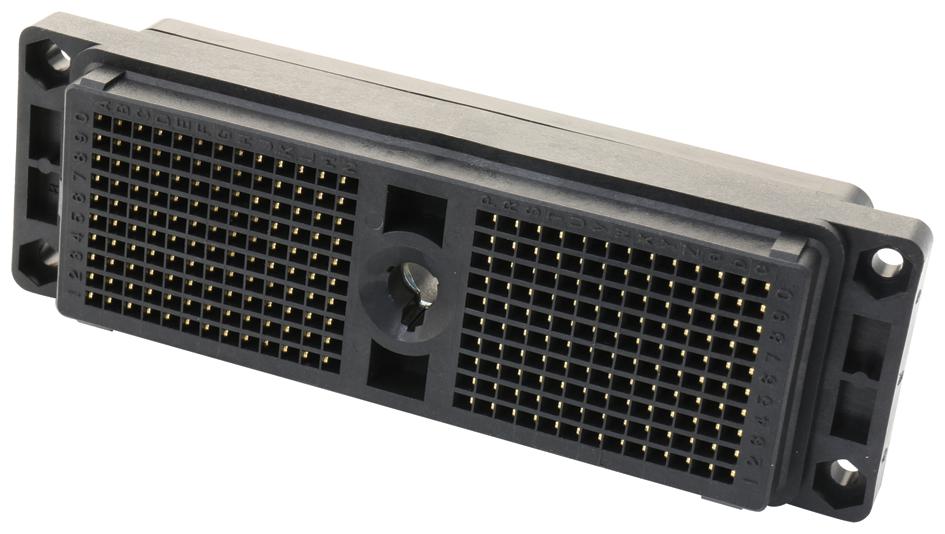

Buy the ITT Industries Series DL Power Signal Connector: DL5260RW6B
Enhance your projects with the ITT Industries Series DL5260RW6B high-density ZIF connector. Featuring 260 contacts, rugged aluminum housing, and gold-plated contacts, it’s designed for quick, reliable mating in critical environments. Suitable for industrial, aerospace, and computing applications, this connector supports up to 60A with durable construction for over 20,000 cycles. Accessorize with backshells, polarizing posts, and protective covers to ensure EMI/RFI shielding and system integrity. Order online now and optimize your interconnection needs with ease and confidence.
Order your ITT Industries Series DL5260RW6B high-density connector today and ensure reliable, quick-connect solutions for demanding industrial and aerospace systems.
Frequently Asked Questions
Where can I buy ITT CANNON DL5260RW6B?
You can click on the BUY or RFQ button to purchase DL5260RW6B from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DL5260RW6B?
You can download the DL5260RW6B datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DL5260RW6B?
ITT CANNON
