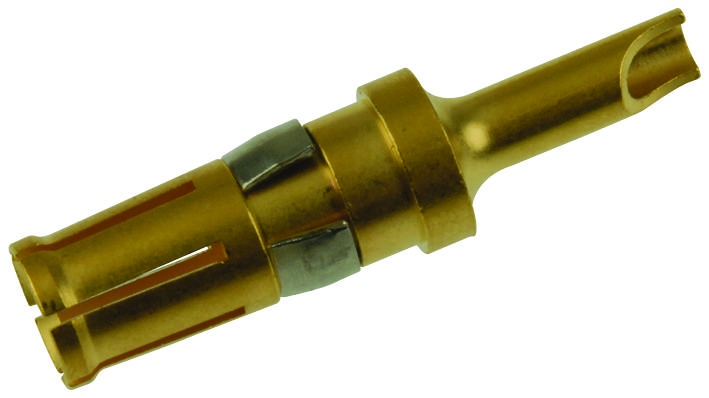

ITT CANNON DM5374424 High Power Connector
The DM53744-24 is a high-power solder receptacle contact crafted from durable copper with a gold plating. Compatible with Combo D series connectors, it supports a maximum wire size of 16 AWG, making it ideal for industrial and high-power applications. This contact has a rated current of 10A and can operate efficiently within a temperature range from -55°C to +125°C, ensuring reliable performance in demanding environments. Its robust design and material composition make it suitable for various complex electrical and electronic systems requiring solid, corrosion-resistant connections.
ITT CANNON DM5374424 High Power Connector Specifications:
- Material: Copper with gold finish
- Wire Size: Supports up to 16 AWG
- Current Rating: 10A
- Temperature Range: -55°C to +125°C
- Contact Resistance: 4 milli ohms max
- Dielectric Withstanding Voltage: 1000 VAC at Sea Level
- Contact Material: Copper Alloy, Nickel Plated
- Application Type: Industrial high-power connections
- Component Type: Solder receptacle contact
- Number of Signal Pins: 1
- Contact Plating: Gold over Nickel
- Other Features: High Power Contact, Retaining Ring Material is Copper Alloy Nickel Plated
- Size: 8 Contact, Straight, used with Combo D series connectors
Buy the Buy ITT DM53744-24 Part Number 053745-0007 Online
Purchase the ITT DM53744-24 high-power solder receptacle contact online for secure and efficient electrical connections. Made from copper with a gold finish, supporting up to 16 AWG wire, rated 10A, and operating from -55°C to +125°C. Designed for industrial environments, it ensures reliable performance with a low contact resistance of 4 mill ohms and dielectric withstand voltage of 1000 VAC at sea level. Ideal for high-power, high-reliability applications requiring durable, corrosion-resistant connections.
Order your ITT DM53744-24 high-power solder receptacle contact today and ensure reliable, durable connections for industrial applications.
Frequently Asked Questions
Where can I buy ITT CANNON DM5374424?
You can click on the BUY or RFQ button to purchase DM5374424 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DM5374424?
You can download the DM5374424 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DM5374424?
ITT CANNON
