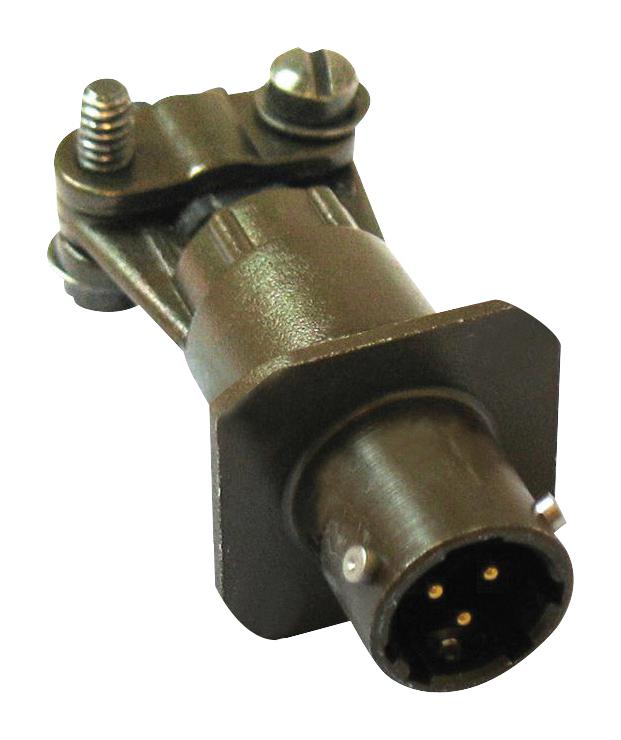

ITT CANNON KPSE01F106P Circular Connector
The KPSE01F10-6P from ITT Cannon is a durable circular cable mount receptacle designed for harsh environments. It conforms to MIL-DTL-26482 Series I standards and features six crimp contacts with gold plating, housed in an aluminum alloy shell with olive drab chromate over cadmium plating. The connector is environmentally sealed to IP67, capable of withstanding vibrations, shocks, and temperatures from -55°C to +125°C. Rated for 500 mating cycles, it facilitates quick assembly and reliable electrical performance, making it ideal for industrial, military, and commercial applications requiring high durability and environmental resistance.
ITT CANNON KPSE01F106P Circular Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate over cadmium plating
- Contact Material: Copper alloy with gold plating
- Number of Contacts: 6
- Contact Size: 20
- Shell Size: 10
- Contact Arrangement: 10-6
- Contact Type: Crimp contacts
- Environmental Sealing: IP67, resistant to water and dust
- Operating Temperature Range: -55°C to +125°C
- Water Tightness: IP67 according to DIN 40 050 (0.2 bar pressure for 48 hours)
- Vibration Resistance: 200 m/s² at 10 to 2000 Hz
- Mating Cycles: Minimum 500
- Test Voltage: 1500 V RMS
- Rated Current: 7.5A for AWG20
- Insulator Resistance: ≥5000 MΩ
- Operating Voltage: Use in accordance with DIN VDE part 410 and IEC 60364-4-41
Buy the ITT Circular Part KPSE01F10-6P – Reliable Circular Connector for Industrial Applications
Order the ITT Circular Part KPSE01F10-6P online today and enhance your industrial or military applications with a high-quality, rugged, and environmentally sealed connector that ensures superior performance. Designed to withstand extreme temperatures, vibrations, and water exposure, this MIL-DTL-26482 standard connector provides quick assembly, long-lasting reliability, and excellent electrical contact. Make your purchase now and enjoy the benefits of a top-tier, corrosion-resistant connector suited for harsh, demanding environments requiring secure and dependable connections.
Buy ITT Circular Part KPSE01F10-6P now and experience unmatched durability, environmental protection, and reliable electrical performance in demanding environments.
Frequently Asked Questions
Where can I buy ITT CANNON KPSE01F106P?
You can click on the BUY or RFQ button to purchase KPSE01F106P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part KPSE01F106P?
You can download the KPSE01F106P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of KPSE01F106P?
ITT CANNON
