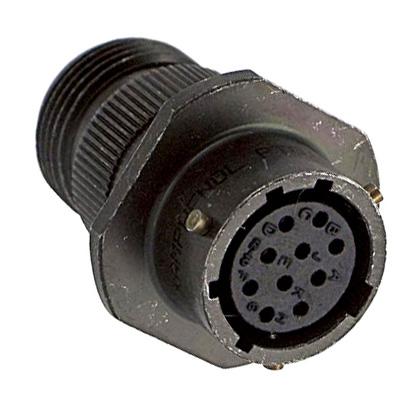

ITT CANNON KPT01A1210S Circular Connector
The KPT01A12-10S from ITT Cannon is a durable circular connector designed for harsh environments, meeting MIL-DTL-26482 Series I standards. It features a cable mount receptacle with 10 gold-plated solder cup contacts, an aluminum alloy shell with olive drab chromate over cadmium plating, and polychloroprene insulators for environmental sealing. The connector offers high electrical reliability, with a temperature range from -55°C to +125°C, vibration resistance at 200 m/s², and can endure at least 500 mating cycles. Its IP68 rating ensures protection against water ingress, making it suitable for industrial and demanding commercial applications.
ITT CANNON KPT01A1210S Circular Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate over cadmium plating
- Contact Material: Copper alloy, gold plated
- Number of Contacts: 10, size 20, solder cup type
- Operating Temperature: -55°C to +125°C
- Water Tightness: IP67/IP68 according to DIN 40 050, withstands 0.2 bar pressure over 48 hours
- Vibration Resistance: 200 m/s² at 10 to 2000 Hz
- Electrical Resistance: Insulation resistance of 5000 MΩ at 25°C
- Contact Rating: AWG20, 7.58 A
- Mating Cycles: 500 minimum
- Test Voltage: 1500 V rms
- Sealing and Environment: Environmentally sealed, suitable for extended durability
- Connector Type: Cable mount receptacle with quick disconnect bayonet coupling
- Size: Shell size 12, contact arrangement 12-10
- Compliance and Standards: MIL-DTL-26482 Series I, VG95319
- Environmental Resistance: High shock, vibration, and exposure resilience
Buy the Cannon KPT01A12-10S – Reliable Circular Connector for Industrial Applications
Secure your industrial connections with the Cannon KPT01A12-10S circular connector, designed to withstand extreme conditions, vibrations, and exposure. With sealed, IP68-rated protection, it is ideal for demanding environments requiring durable, high-performance electrical connections. Featuring high contact density, corrosion-resistant plating, and robust construction, this connector ensures long-term reliability and safety. Whether used in industrial automation, defense, or heavy machinery, the KPT series provides efficient, secure connections with easy mating and unmating, meeting rigorous standards for demanding industrial applications.
Buy Cannon KPT01A12-10S now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON KPT01A1210S?
You can click on the BUY or RFQ button to purchase KPT01A1210S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part KPT01A1210S?
You can download the KPT01A1210S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of KPT01A1210S?
ITT CANNON
