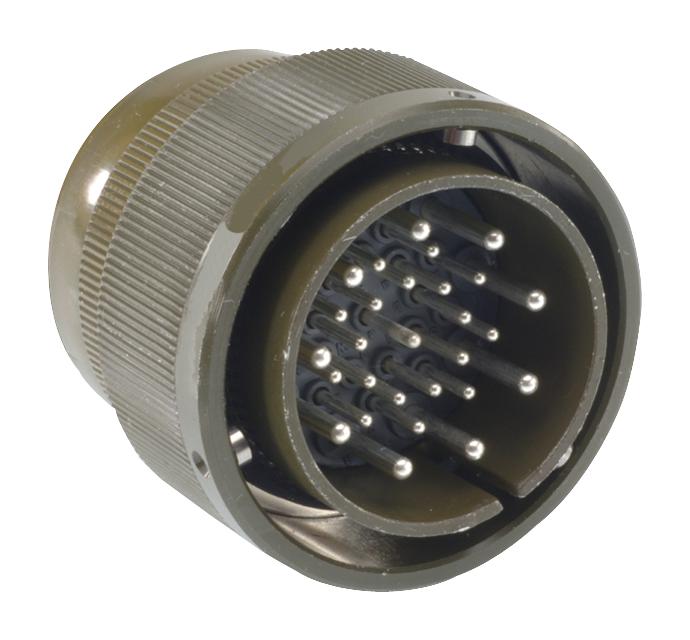

ITT CANNON KPT06A1415P Miniature Circular Connector
The KPT series from ITT Cannon features the KPT06A14-15P, a MIL-DTL-26482 Series I equivalent straight plug connector with 15 contacts. Designed for harsh environments, these miniature circular connectors employ a positive three-point bayonet quick disconnect coupling, five keyway polarization, and a high contact density. They are environmentally sealed to IP68 standards, operating reliably from -55°C to +125°C, with durable performance for up to 500 mating cycles. The connectors resist vibration, salt spray exposure, and have excellent electrical characteristics. Made with an aluminum alloy body coated with olive drab chromate over cadmium plating, and copper alloy solder pin contacts with gold plating, these connectors are optimized for fast assembly with clip-in contact and insulator design, ensuring compatibility and reliability in industrial and commercial applications.
ITT CANNON KPT06A1415P Miniature Circular Connector Specifications:
- Shell Style: Straight plug
- Shell Size: 14
- Number of contacts: 14 (size 20), 1 (size 16)
- Contact Arrangement: 14-15
- Contact Type: Solder Cup
- Contact Plating: Gold plated
- Shell Material: Aluminium alloy
- Shell Plating: Olive drab chromate over cadmium
- Insulator and Gromet Material: Polychloroprene
- Water Tightness: IP67/IP68 according to DIN 40 050
- Operating Temperature: -55°C to +125°C
- Mating Cycles: 500 minimum
- Vibration Resistance: 200 m/s² at 10 to 2000 Hz
- Insulator Resistance: ≥5000 MΩ
- Test Voltage: 1500 V
- Operating Voltage: As per DIN VDE 410 and IEC 60364-4-41
- Waterproof: IP67 to DIN 40 050 (0.2 bar for 48 hours)
Buy the ITT Series MIL-DTL-26482 KPT: KPT06A14-15P
Purchase the ITT Cannon KPT06A14-15P connector online today and benefit from high environmental sealing, excellent electrical performance, and rapid assembly features. Designed to withstand extreme temperatures from -55°C to +125°C, it offers up to 500 mating cycles, vibration resistance, and IP68/IP67 waterproof standards. Made with rugged aluminum alloy and gold-plated contacts, this connector ensures long-lasting reliability in industrial, military, and commercial applications. Secure yours today for dependable connections in demanding conditions.
Buy ITT Cannon KPT06A14-15P now and experience unmatched durability and reliable performance in harsh environments.
