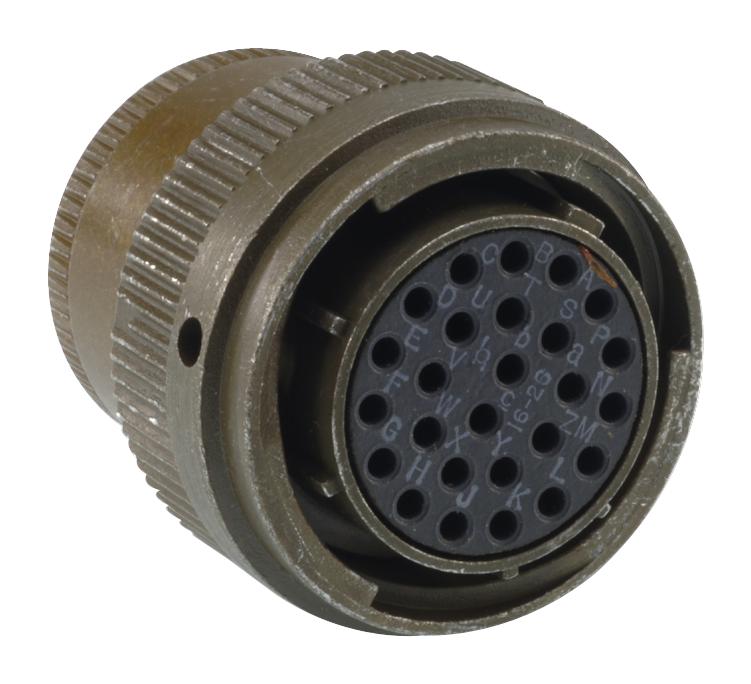

ITT CANNON KPT06B1412P Circular Connector
The KPT06B14-12P is a high-reliability circular connector from the MIL-DTL-26482 Series I equivalent KPT series, designed for harsh environments. It features 12 contacts with gold-plated copper alloy solder cups, an aluminum alloy shell with olive drab chromate over cadmium plating, and a neoprene insulator. Rated IP67 and IP68, it withstands extreme shock, vibration, and environmental exposure. Operating from -55°C to +125°C, it supports at least 500 mating cycles, making it ideal for industrial and military applications requiring durable, quick-mate connections with high contact density and vibration resistance.
ITT CANNON KPT06B1412P Circular Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate over cadmium plating
- Contact Material: Copper alloy with gold plating
- Number of contacts: 14-12, size 20 and 16
- Contact Type: Solder Cup
- Water Tightness: IP67/IP68
- Operating Temperature Range: -55°C to +125°C
- Mating Cycles: Minimum 500
- Vibration Resistance: 200 m/s² at 10-2000 Hz
- Insulator Material: Polychloroprene
- Sealing Standard: VG95319 Part 2, Test No. 5.9.2
- Test Voltage: 1500 V rms
- Current Rating: AWG20 7.5A, AWG16 13.0A
- Salt Spray Resistance: 500 hours
- Operating Voltage: Use in accordance with DIN VDE 410 and IEC 60364-4-41
Buy the Cannon KPT06B14-12P – Reliable Circular Connector for Industrial Applications
Experience the reliability and durability of the Cannon KPT06B14-12P circular connector, engineered for industrial, military, and harsh environment applications. Featuring IP67/IP68 sealing, it withstands extreme shock, vibration, and temperature variations from -55°C to +125°C. The connector supports at least 500 mating cycles, with gold-plated copper alloy contacts ensuring optimal conductivity and resistance to corrosion. Its rugged aluminum alloy shell with olive drab chromate over cadmium plating provides additional corrosion protection. Quick disconnect bayonet coupling and high contact density make this connector easy to install, maintain, and perfect for demanding industrial and military systems needing dependable interconnectivity.
Get Cannon KPT06B14-12P today—built for durability, reliable quick-mate connections, and harsh environment performance.
Frequently Asked Questions
Where can I buy ITT CANNON KPT06B1412P?
You can click on the BUY or RFQ button to purchase KPT06B1412P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part KPT06B1412P?
You can download the KPT06B1412P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of KPT06B1412P?
ITT CANNON
