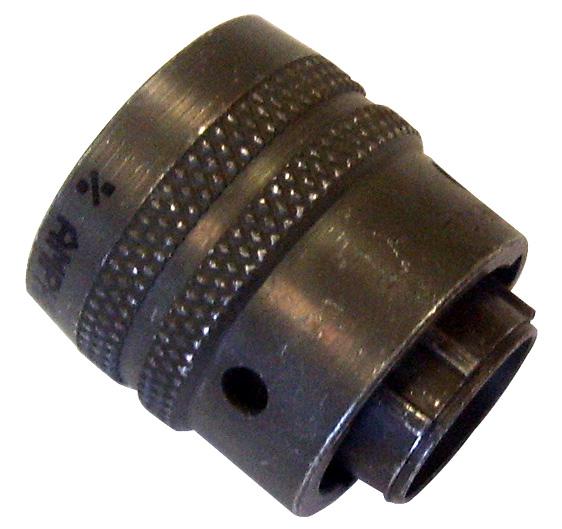

ITT CANNON KPT06F123P Miniature Circular Connector
The KPT06F12-3P from ITT Cannon is a rugged circular connector compliant with MIL-DTL-26482 Series I standards, designed for harsh environments. It features a straight plug with three gold-plated copper alloy contacts, a durable aluminum alloy shell with olive drab chromate over cadmium plating, and a neoprene insulator and grommet for sealing and vibration resistance. Capable of operating from -55°C to +125°C, it withstands 500 mating cycles and vibration up to 200m/s². The connector offers IP67/68 environmental sealing, high insulation resistance of 5000 MΩ, and test voltage of 2300 Vrms, ensuring reliable performance in industrial applications.
ITT CANNON KPT06F123P Miniature Circular Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate over cadmium plating
- Contact Material: Copper alloy, gold plated
- Number of contacts: 3, size 16
- Insulator and Grommet Material: Polychloroprene
- Water Tightness: IP67/68 according to DIN 40 050
- Operating Temperature Range: -55°C to +125°C
- Mating Cycles: Minimum 500
- Vibration Resistance: 200 m/s² at 10 to 2000 Hz
- Insulation Resistance: 5000 MΩ at 25°C
- Test Voltage: 2300 Vrms
- Shell Style: Straight plug
- Environmental Seal: IP67/68
- Durability: Up to 500 mating cycles
- Resistant to Shock, Vibration, and Exposure
- Connection Type: Gold-plated solder cup contacts
- Operating Voltage: As per IEC 60364-4-41, DIN VDE 410
- Sealed with a water-tight design suitable for demanding industrial environments
Buy the Cannon KPT06F12-3P – Reliable Circular Connector for Industrial Applications
Purchase the Cannon KPT06F12-3P circular connector online today and enjoy premium performance with IP67/68 sealing, wide temperature range, and durability for industrial applications. Designed for harsh environments, it offers fast assembly with quick snap-in contacts, high vibration resistance, and excellent electrical features. Ideal for military, industrial, and commercial use, this connector guarantees reliable connections with up to 500 mating cycles, insulation resistance of 5000 MΩ, and tested withstands at 2300 Vrms. Invest in quality for your critical applications now.
Buy Cannon KPT06F12-3P now and experience unmatched reliability and high-performance connection in demanding industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON KPT06F123P?
You can click on the BUY or RFQ button to purchase KPT06F123P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part KPT06F123P?
You can download the KPT06F123P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of KPT06F123P?
ITT CANNON
