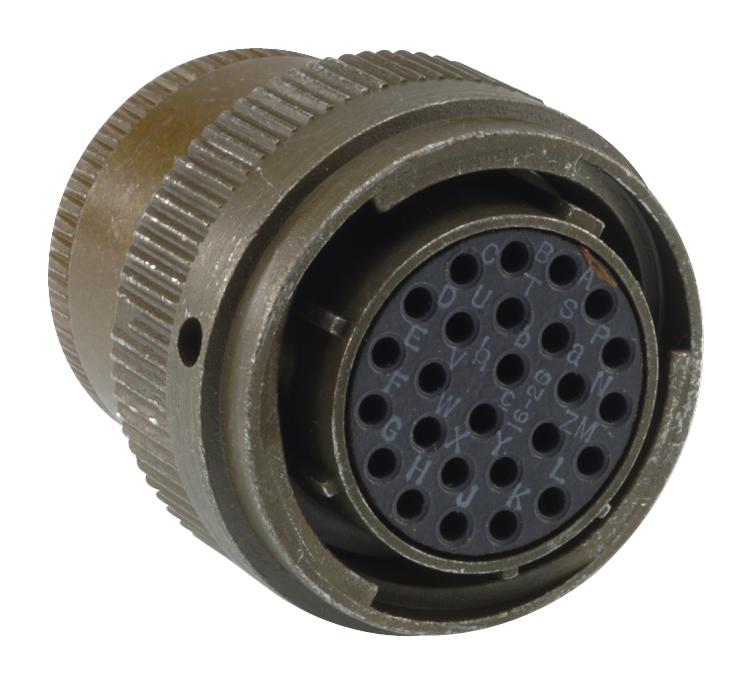

ITT CANNON KPT06F2041P Circular Connector
The KPT06F20-41P from ITT Cannon is a miniature circular connector meeting MIL-DTL-26482 series I standards. It features a straight plug with 41 contacts, a quick bayonet coupling, and five keyway polarization for secure, reliable connection in harsh environments. Designed for high durability, it withstands extreme shock, vibration, and exposure, with an IP68 environmental seal. Constructed with an aluminum alloy body finished in olive drab chromate over cadmium, and gold-plated copper alloy contacts, it operates efficiently from -55°C to +125°C and supports 500 mating cycles, suitable for industrial and military applications.
ITT CANNON KPT06F2041P Circular Connector Specifications:
- Shell Style: Straight plug
- Shell Material: Aluminium alloy
- Shell Plating: Olive drab chromate over cadmium plating
- Contact Arrangement: 20-41
- Number of contacts: 41 contacts, size 20
- Contact Type: Solder cup
- Contact Plating: Gold plated
- Operating Temperature: -55°C to +125°C
- Mating Cycles: 500 minimum
- Water Tightness: IP67/IP68 (DIN 40 050)
- Shock and Vibration Resistance: Shock up to 200 m/s², vibration 10 to 2000 Hz
- Contact Rating: 7.5A at AWG20
- Insulator Resistance: ≥5000 MOhm
- Test Voltage: 1500 V RMS
- Waterproof: Yes, IP67/IP68 rated
- Assembly: Clip-in contacts and insulators for quick installation
- Standards Compliance: MIL-DTL-26482 series I
- Operating Voltage: As per DIN VDE and IEC standards
- Durability: 500 mating cycles, high resistance to shock and vibration
Buy the ITT Series KPT Circular Connector: KPT06F20-41P
Purchase the ITT Series KPT06F20-41P circular connector online today to secure a highly durable, MIL-spec rated connection solution. Designed with 41 contacts, it offers IP68 sealing, extreme temperature tolerance from -55°C to +125°C, and supports over 500 mating cycles. Built with an aluminum alloy shell finished in olive drab chromate over cadmium, and gold-plated copper contacts, this connector delivers excellent electrical performance in harsh environments. Easy to assemble with clip-in contacts, it is ideal for industrial, military, and harsh environment applications seeking reliable, high-quality connectivity.
Order your ITT Series KPT06F20-41P circular connector today and ensure reliable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON KPT06F2041P?
You can click on the BUY or RFQ button to purchase KPT06F2041P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part KPT06F2041P?
You can download the KPT06F2041P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of KPT06F2041P?
ITT CANNON
