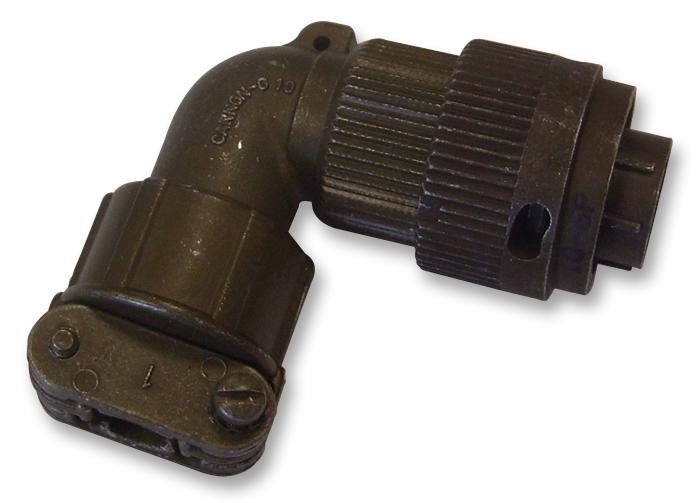

ITT CANNON KPT08F833S Circular Waterproof Connector
This circular connector features a shell size 8 with an 8-33 contact arrangement and three solder cup contacts, plated with gold on copper alloy. It is designed with a shell made of aluminum alloy, finished with olive drab chromate over cadmium plating, offering water tightness certified to IP67. The connector is suitable for operating temperatures from -55°C to +105°C, with a dielectric resistance of over 5000 MOhm, and a contact rating of 7.5A at AWG20. It supports 500 mating cycles and is tested for vibration resistance, making it ideal for demanding industrial applications requiring reliable waterproof electrical connections.
ITT CANNON KPT08F833S Circular Waterproof Connector Specifications:
- Shell Size: 8
- Contact Arrangement: 8-33
- Number of Contacts: 3, size 20
- Contact Type: Solder Cup
- Contact Material: Copper alloy, gold plated
- Shell Material: Aluminum alloy
- Shell Plating: Olive drab chromate over cadmium
- Insulator and Grommet Material: Polychloroprene
- Water Tightness: IP67 according to DIN 40 050
- Operating Temperature: -55°C to +105°C
- Mating Cycles: 500 min
- Vibration Resistance: 200 m/s² at 10-2000 Hz
- Contact Rating: 7.5A at AWG20
- Insulator Resistance: >5000 MOhm
- Test Voltage: 1500 V rms
- Compliance: VG95319, VG95210 standards
Buy the Buy Cannon Circular Connector Part Number KPT08F8-33S Online
Purchase the Cannon Circular Waterproof Connector KPT08F8-33S online today to experience reliable, waterproof electrical connections suitable for industrial environments. With an aluminum alloy shell, gold-plated copper contacts, and an IP67 rating, this connector provides excellent water resistance and durability. Its robust construction ensures up to 500 mating cycles, making it ideal for demanding applications that require high-performance connectivity in harsh conditions. Enjoy fast shipping and secure ordering to meet project deadlines and maintain operational efficiency.
Order your Cannon Series KPT08F8-33S waterproof connector today and ensure reliable, industrial-grade waterproof electrical connections for demanding environments.
Frequently Asked Questions
Where can I buy ITT CANNON KPT08F833S?
You can click on the BUY or RFQ button to purchase KPT08F833S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part KPT08F833S?
You can download the KPT08F833S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of KPT08F833S?
ITT CANNON
