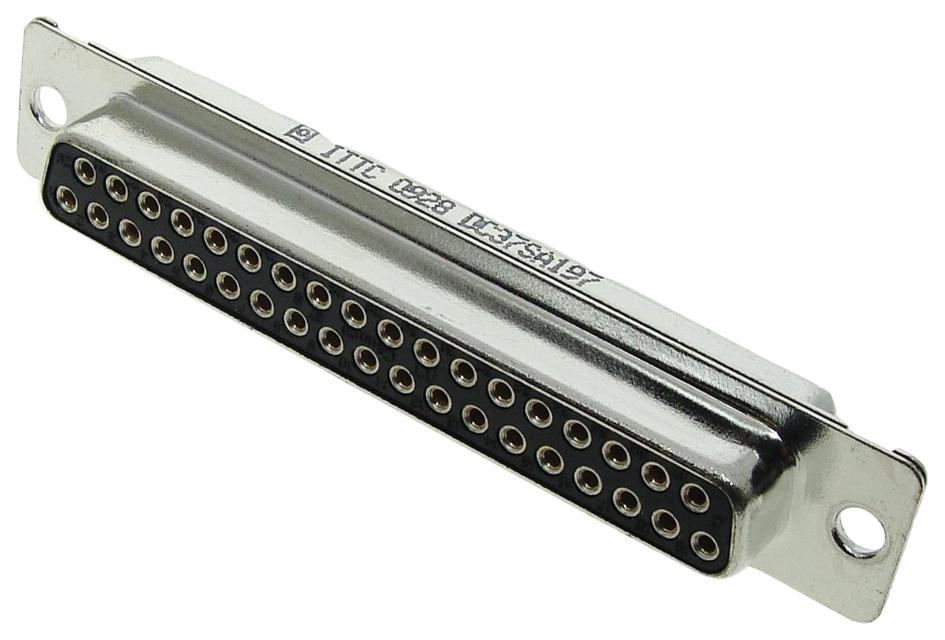

ITT CANNON M24308214Z Environmental Connector
The Cannon D*D Environmental Series includes rugged connectors designed for high vibration and moisture resistance, meeting MIL-C-24308 standards. Features include a rugged aluminum shell with a peripheral seal, various contact options such as solder and crimp types with gold plating, and field-proven rear insertion and release retention systems. These connectors are suitable for aircraft, missile, and ground equipment applications, with extensive environmental testing including salt spray, vibration, and shock resistance. They offer reliable electrical performance and durable construction for demanding aerospace and military environments.
ITT CANNON M24308214Z Environmental Connector Specifications:
- Shell Material: Aluminum, cadmium plated with yellow chromate coating
- Contacts: Copper alloy, gold plated .00002 (.0005) over nickel
- Contact Termination: Solder pot for up to #20 AWG, crimp for #20, #22, #24 AWG
- Voltage Rating: Various AC RMS voltages (measurement at 25°C)
- Insulation Resistance: > 5,000 megohms per MIL-C-24308
- Contact Voltage Drop: Max 2.67 millivolts per amp
- Contact Separation Force: 1-8 ounces
- Environmental Resistance: Salt spray, vibration, shock, moisture resistance exceed MIL standards
- Air Leakage: Max 1 cubic inch per hour at 30 PSI pressure differential
- Altitude Resistance: Up to 70,000 feet
- Contact Retention Force: Min 8 pounds initial, 5 pounds after 10 cycles
- Dimensions: Various sizes for different shell configurations, with panel cutouts and mounting details provided
- Recommended PCB hole diameters: 0.90 (.035) - 1.00 (.040)
Buy the Cannon D*D – Reliable Environmental Connectors for Aerospace Applications
Purchase Cannon D*D Environmental Series connectors online today to benefit from high vibration, moisture resistance, and reliable performance in aerospace, missile, and ground support systems. These durable, MIL-standard connectors feature rugged aluminum shells, gold-plated contacts, and extensive environmental resistance. Ideal for applications requiring robust electrical connections under demanding conditions, they are available in various sizes and configurations. Secure your reliable aerospace-grade connectors now to ensure your equipment's longevity and operational excellence in harsh environments.
Order your Cannon Series D*D environmental connectors today and ensure your aerospace and military projects achieve superior durability and performance.
Frequently Asked Questions
Where can I buy ITT CANNON M24308214Z?
You can click on the BUY or RFQ button to purchase M24308214Z from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part M24308214Z?
You can download the M24308214Z datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of M24308214Z?
ITT CANNON
