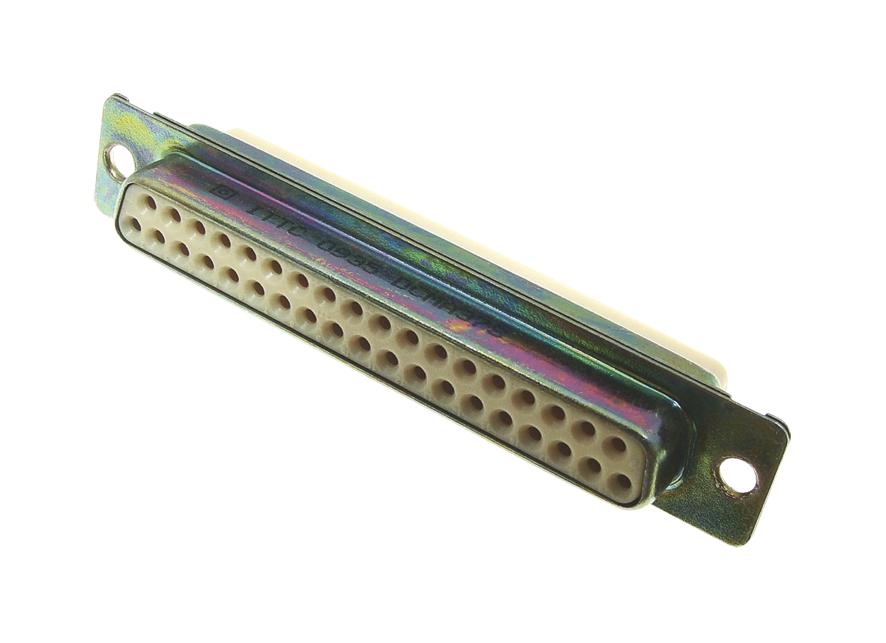

ITT CANNON M24308234F Environmental Connectors
The D*D Environmental Series connectors are designed for aerospace and ground support applications, offering superior vibration and moisture resistance. Made with rugged aluminum shells, these connectors feature solder and crimp contacts with gold plating for durability. They meet MIL-C-24308 standards and provide excellent environmental sealing, corrosion, and moisture resistance, suitable for high-altitude, vibration, and salt spray exposure. Variety of configurations available, including standard and float mount options, with specifications ensuring reliability in demanding environments.
ITT CANNON M24308234F Environmental Connectors Specifications:
- Shell Material: Aluminum, cadmium plated with yellow chromate coating
- Contacts: Copper alloy, gold plated 0.00002 (0.0005) over nickel 0.00004 (0.0010)
- Contact Termination: Solder pot for #20 AWG, crimp for #20, #22, #24 AWG stranded wire
- Voltage Rating: AC RMS, 60Hz, at 25°C, varies with configuration
- Insulation Resistance: Greater than 5,000 megohms per MIL-C-24308
- Contact Voltage Drop: Max 2.67 millivolts per amp
- Contact Separation Force: 1 to 8 ounces
- Environmental Resistance: Exceeds MIL-STD-202A salt spray, vibration, moisture resistance, shock
- Altitude Resistance: Up to 70,000 feet
- Air Leakage: Max 1 cubic inch per hour at 30 PSI differential
- Contact Retention Force: Minimum 8 pounds initially, 5 pounds after ten cycles
- Sealing and sealing integrity from full to nearly full engagement
- Temperature Range: Suitable for various environmental exposure conditions
Buy the Buy ITT Cannon D*D Environmental Series Part Number M24308234F Online
Get your ITT Cannon D*D Environmental Series connectors online today. Designed for aerospace, these connectors offer superior vibration, moisture, and environmental resistance. With aluminum shells, gold-plated contacts, and compliance with MIL-C-24308 standards, they ensure long-lasting performance. Perfect for high-altitude, vibration, and corrosive environments, they feature various mounting options, including standard and float mountings. Secure, sealed, and tested to handle extreme conditions, these connectors deliver dependable, high-quality connections for critical applications. Purchase now for reliable performance.
Buy ITT Cannon D*D M24308234F now and experience unmatched reliability and performance in demanding aerospace environments.
Frequently Asked Questions
Where can I buy ITT CANNON M24308234F?
You can click on the BUY or RFQ button to purchase M24308234F from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part M24308234F?
You can download the M24308234F datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of M24308234F?
ITT CANNON
