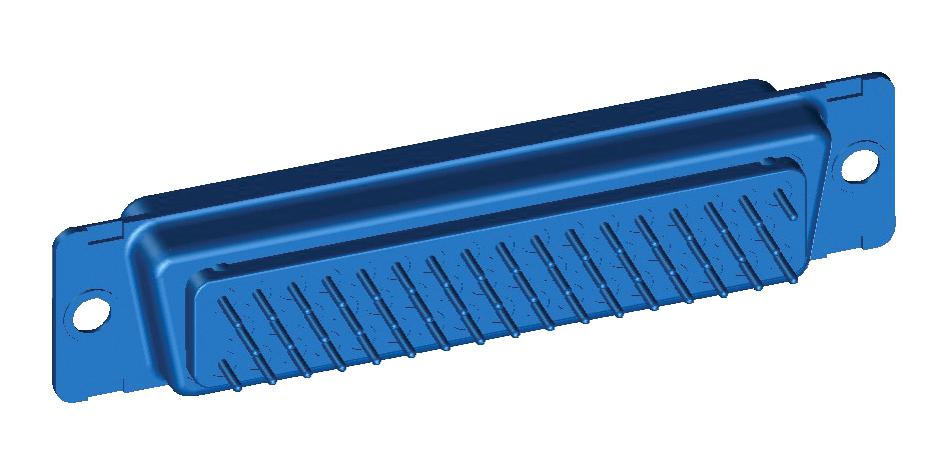

ITT CANNON M24308235Z Environmental Connector
The M24308235Z is a rugged environmental connector designed for aerospace and defense applications. Featuring a durable aluminum shell with cadmium plating and yellow chromate coating, it provides excellent vibration, moisture resistance, and environmental sealing. The connector supports solder and crimp contact termination options, accommodating wire sizes up to #20 AWG. It ensures high electrical performance with insulation resistance greater than 5,000 megohms, low contact voltage drop, and excellent corrosion and shock resistance, making it ideal for demanding aerospace, missile, and ground support systems requiring reliable, durable connections.
ITT CANNON M24308235Z Environmental Connector Specifications:
- Shell Material: Aluminum, cadmium plated with yellow chromate coating
- Contacts: Copper alloy, gold plated, accommodating #20 AWG wire (solder and crimp types)
- Contact Resistance: Low voltage drop, maximum 2.67 millivolts per amp
- Insulation Resistance: Greater than 5,000 megohms at 25°C
- Environmental Resistance: Exceeds MIL-STD-202A salt spray, vibration, shock, and moisture testing
- Voltage Rating: AC RMS, 60Hz, specific to application requirements
- Maximum Altitude: 70,000 feet
- Temperature Range: -55°C to +105°C
- Sealing: Effective from full engagement to 1/16 inch short of full engagement
- Contact Retention Force: Minimum 8 pounds (first cycle), 5 pounds after tenth cycle
- Dimensions: Varies by model, shell sizes from DED-9P to DDD-50S, detailed in datasheet
- Approvals: MIL-C-24308 compliant, UL Listed, CSA Certified
Buy the Buy M24308235Z Environmental Connector Part Number M24308235Z Online
Enhance your aerospace and defense systems by purchasing the M24308235Z Environmental Connector online. This rugged connector features a durable aluminum shell with cadmium plating and yellow chromate coating, providing superior vibration, moisture, and corrosion resistance. Compatible with solder and crimp contacts, it is suitable for high-performance applications up to 70,000 feet altitude. Designed to meet MIL-C-24308 specifications, it ensures reliable electrical connections in demanding environments. Buy online now for quick delivery and start securing your aerospace connections with trusted, high-quality components.
Order your M24308235Z Environmental Connector today and upgrade your aerospace projects with reliable, vibration-resistant, and moisture-proof connections.
