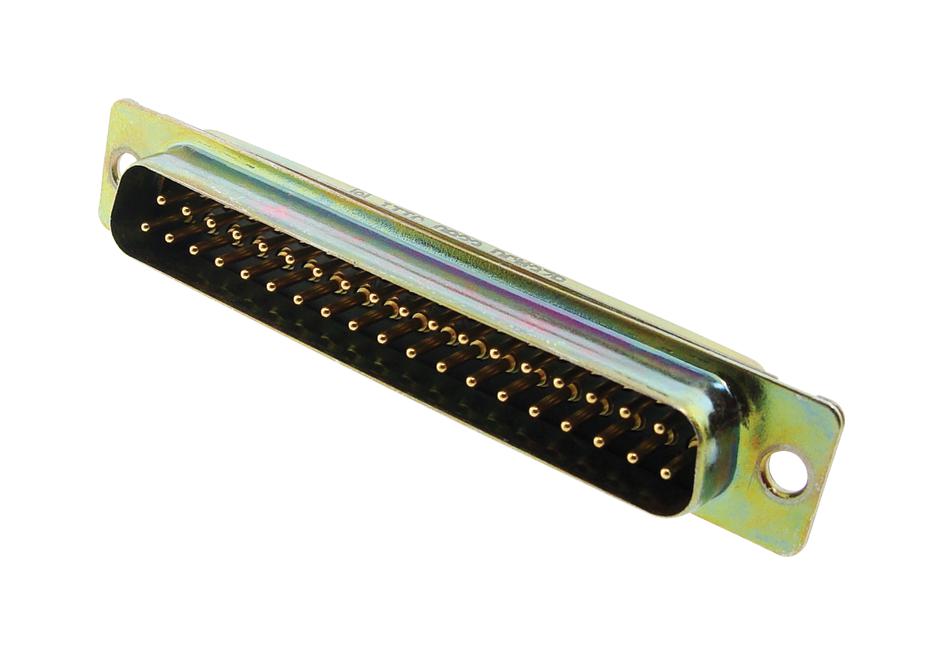

ITT CANNON M24308241Z Environmental Connector
The M24308241Z is a high-reliability military-grade environmental connector designed for rugged aerospace and ground support equipment. Featuring a robust aluminum shell with cadmium plating and yellow chromate coating, it provides excellent corrosion and moisture resistance. The connector supports both solder and crimp contact termination methods, accommodating up to #20 AWG stranded wire. It meets MIL-C-24308 standards, ensuring high insulation resistance, low contact voltage drop, and superior vibration and shock resistance for demanding applications in challenging environments.
ITT CANNON M24308241Z Environmental Connector Specifications:
- Shell Material: Aluminum, cadmium plated with yellow chromate coating
- Contacts: Copper alloy, gold plated .00002 (.0005) over nickel .00004 (.0010)
- Contact Termination: Solder pot for up to #20 AWG, Crimp for #20, #22, #24 AWG
- Insulation Resistance: Greater than 5,000 megohms
- Voltage Rating: 600 V AC (rms), measured at 25°C
- Vibration Resistance: Exceeds MIL-STD-202A, Method 204
- Corrosion Resistance: Exceeds 50-hour salt spray test per MIL-STD-202A, Method 101A
- Moisture Resistance: Exceeds MIL-STD-202A, Method 106
- Shock Resistance: Exceeds MIL-STD-202A, Method 213
- Seal: Effective from full to 1/16 engagement
- Contact Retention Force: Min. 8 pounds initially, minimum 5 pounds after 10 cycles
- Operating Altitude: Up to 70,000 feet
- Dimensions vary according to shell size, with specific measurements for each configuration
- Temperature Range: Suitable for -55°C to +105°C
Buy the Cannon D*D – Reliable Aerospace Connector for Industrial Applications
Secure your aerospace and industrial projects with the Cannon D*D Environmental Connector. Designed for harsh environments, it offers superior vibration, moisture, and corrosion resistance. Easy to install with both solder and crimp terminations, it ensures reliable electrical connections in demanding applications. Built with a rugged aluminum shell and certified to MIL-C-24308 standards, this connector guarantees high insulation resistance, low contact voltage drop, and excellent shock resistance. Buy online today and elevate your project's reliability with this durable, high-performance environment connector suited for aerospace, military, and industrial equipment.
Order your Cannon D*D Environmental Series connector today and ensure your aerospace and ground support projects have durable, high-performance connectivity.
Frequently Asked Questions
Where can I buy ITT CANNON M24308241Z?
You can click on the BUY or RFQ button to purchase M24308241Z from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part M24308241Z?
You can download the M24308241Z datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of M24308241Z?
ITT CANNON
