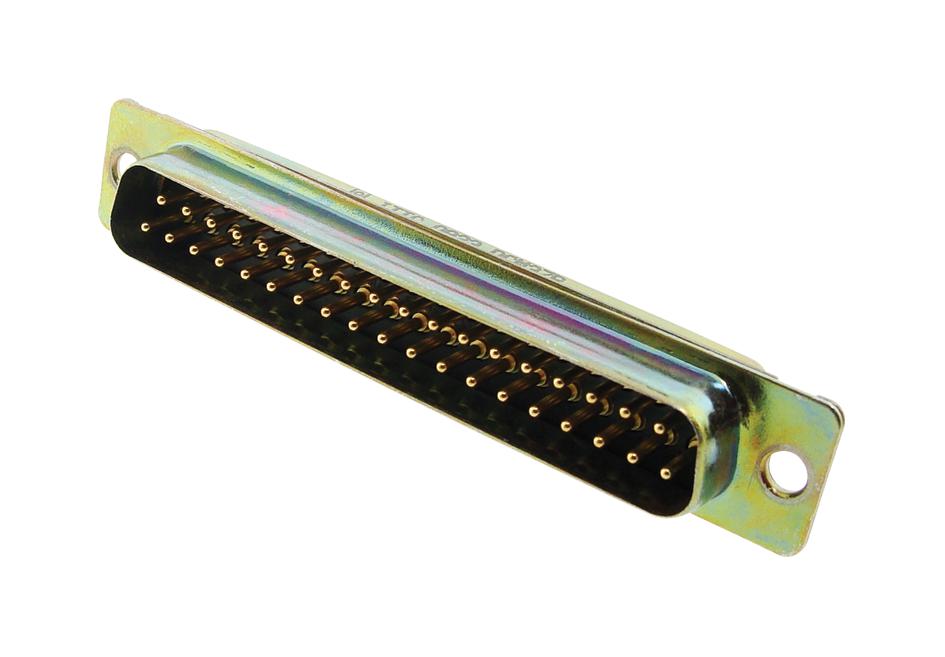

ITT CANNON M24308242Z Environmental Rectangular Connector
The M24308242Z is a high-performance environmental rectangular electrical connector designed for aerospace and ground support applications. Featuring a rugged aluminum shell with cadmium plating and yellow chromate coating, it offers superior vibration, moisture, and corrosion resistance. Equipped with either solder or crimp contacts made from gold-plated copper alloy, these connectors support wire gauges up to #20 AWG. Suitable for high-altitude environments up to 70,000 feet, they ensure reliable electrical connections in extreme conditions, accredited to MIL standards, with threaded or panel mount options, sealed for environmental protection, and rated for high voltage and insulation resistance.
ITT CANNON M24308242Z Environmental Rectangular Connector Specifications:
- Shell Material: Aluminum, cadmium plated with yellow chromate coating
- Contacts: Copper alloy, gold plated over nickel, solder or crimp type
- Wire Range: Up to #20 AWG stranded wire
- Voltage Rating: 600 V AC at 25°C
- Insulation Resistance: Greater than 5,000 megohms
- Temperature: -55°C to +105°C
- Altitude Rating: Up to 70,000 feet
- Certifications: MIL-C-24308 compliant, Exceeds salt spray and moisture resistance standards
- Physical Dimensions: Vary by model, typical panel cutout diameter 0.120 inch (3.05 mm), mounting options include panel, rear, float
- Sealing: Environmental seal effective from full engagement to just short of full engagement, air leakage max 1 in3/hr at 30 PSI
- Vibration and Shock: Exceeds MIL-STD-202A, Method 204 and Method 213
- Corrosion Resistance: Salt spray for 50 hours per MIL standards
- Contact Retention: Minimum of 8 pounds initial, 5 pounds after 10 cycles
Buy the Cannon Series D*D Environmental Rectangular Connector: M24308242Z
Purchase the Cannon D*D environmental rectangular connector online to ensure robust and reliable electrical connections for aerospace, military, and industrial applications. Featuring a rugged aluminum shell with corrosion-resistant plating and high-performance gold-plated contacts, it guarantees protection against vibration, moisture, and extreme altitudes up to 70,000 feet. The connector is MIL-compliant, sealed for environmental protection, and supports wire gauges up to #20 AWG, making it ideal for critical ground support and aerospace systems needing long-lasting durability and superior performance in extreme conditions.
Get Cannon Series D*D environmental rectangular connector today—built for reliability in extreme aerospace and ground support environments.
Frequently Asked Questions
Where can I buy ITT CANNON M24308242Z?
You can click on the BUY or RFQ button to purchase M24308242Z from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part M24308242Z?
You can download the M24308242Z datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of M24308242Z?
ITT CANNON
