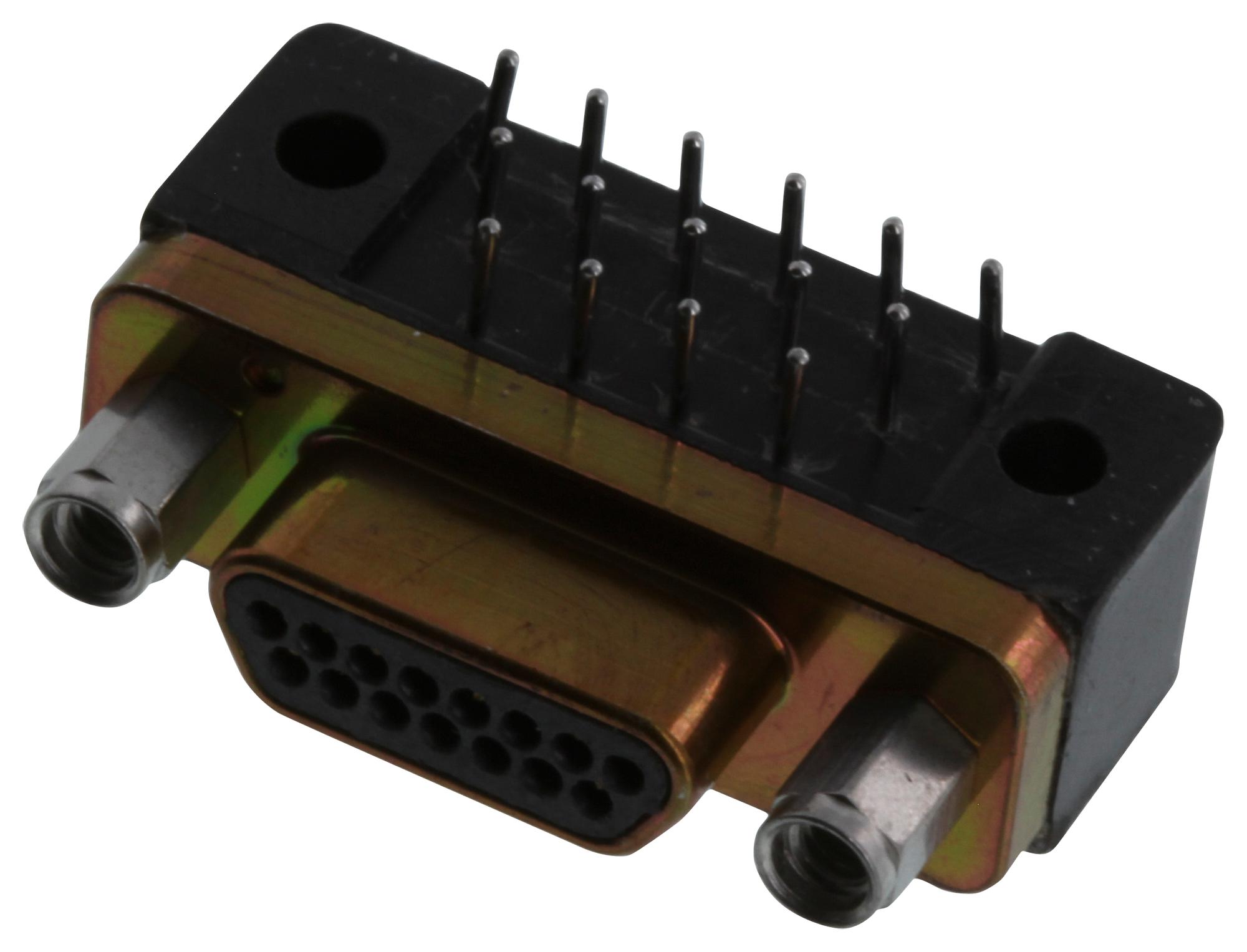

ITT CANNON MDM15PCBRP Micro-D Connector
The Micro-D Metal Shell connector offers high reliability and durability in harsh environments, designed with aluminum shells and gold-plated copper contacts. It features a .050 inch contact spacing, multiple mounting options, and configurations supporting from 9 to 100 contacts. Suitable for aerospace, military, industrial, and medical applications, it provides excellent EMI/RFI shielding, moisture sealing, and high-temperature performance, making it ideal for compact, lightweight interconnect solutions needing ruggedness and high-density contacts.
ITT CANNON MDM15PCBRP Micro-D Connector Specifications:
- Shell Material: 6061-T6 Aluminum alloy with yellow chromate/cadmium finish over electroless nickel
- Insulator: Liquid Crystal Polymer, glass-filled diallyl phthalate or polyester, depending on configuration
- Contacts: Copper alloy, gold plated, 50 microinch thickness
- Contact Spacing Centers: 0.050 inch (1.27 mm)
- Number of Contacts: 9 to 100, various configurations supported
- Termination Type: Solder pot, crimp, or other custom options
- Mounting Hardware: Jackpost, jackscrew, or custom mounting options
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: 600 VAC at sea level, 150 VAC at 70,000 ft altitude
- Insulation Resistance: > 100 megaohms
- Durability: 500 mating cycles
- Vibration: 20 G's, 10-20,000 Hz, 12 hours
- Moisture Resistance: Meets MIL-STD-202, Method 1002, Type II
- Contact Resistance: 8 milliohms max at 3A, 10 milliohms max at 1mA
- Mechanical: Axial load capability of 5 lbs min, per MIL-DTL-83513
- Compliance: RoHS compliant, optional gold plating for lead replacement
Buy the ITT Cannon Micro-D – Reliable Micro Connector for Industrial Applications
Order the ITT Cannon Micro-D Connector today to ensure reliable, high-density interconnection solutions for aerospace, medical, military, and industrial applications. This rugged, lightweight connector features gold-plated copper contacts, aluminum shell construction, and supports up to 100 contacts with a .050 inch spacing. It offers excellent EMI/RFI shielding, moisture sealing, and high-temperature operation from -55°C to +125°C. Suitable for high-reliability systems requiring compact design, the Micro-D Connector guarantees optimal performance, durability, and easy integration for your toughest projects.
Buy ITT Cannon Micro-D Connector now and experience unmatched durability and performance in demanding industrial and aerospace environments.
Frequently Asked Questions
Where can I buy ITT CANNON MDM15PCBRP?
You can click on the BUY or RFQ button to purchase MDM15PCBRP from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM15PCBRP?
You can download the MDM15PCBRP datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM15PCBRP?
ITT CANNON
