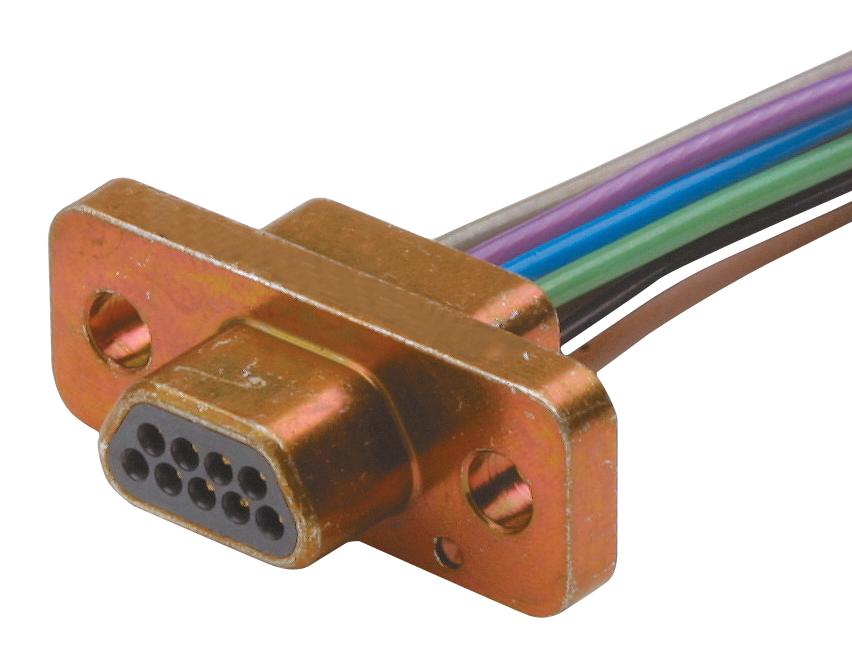

ITT CANNON MDM15PH006BF222 Micro-D Connectors
Micro-D metal shell connectors offer high reliability, rugged aluminum shells, and precise gold-plated copper contacts. Designed to meet MIL-DTL-83513 standards, these connectors support up to 100 contacts with various termination options including solder, crimp, and PC board. Ideal for aerospace, military, industrial, and medical applications, they feature corrosion-resistant finishes, high vibration and shock resistance, and high-temperature capabilities up to 200°C. The series includes different shell sizes, polarization keys, and mounting hardware, providing versatile solutions for demanding environments requiring high density, secure connections, and EMI/RFI shielding.
ITT CANNON MDM15PH006BF222 Micro-D Connectors Specifications:
- Shell Material: 6061-T6 Aluminum alloy with yellow chromate/cadmium, Type II, Class 3 finish over electroless nickel per SAE AMS-C-26074, Class 4
- Insulator Material: Liquid Crystal Polymer (GLCP-30F), Polyphenylene Sulfide (MIL-G-45204, Type GPT-30F), or Polyester (MIL-M-24519, Type GPT-30F), depending on version
- Contacts: Copper alloy, gold plated, 50 microinch thickness, support #24 to #32 AWG wire
- Hardware: 300 Series stainless steel, passivated; optional jackpost kits
- Performance: Dielectric withstand voltage 600 VAC at sea level, 150 VAC at 70,000 ft; Insulation resistance > 100 megaohms; Contact resistance < 8 milliohms
- Temperature range: -55°C to +200°C for high-temp versions; -55°C to +150°C for standard
- Vibration resistance: 20 G's for 12 hours; durability: 500 mating cycles
- Sealing: Compression silicone elastomer for moisture and humidity protection
- Mounting: Brass or stainless steel hardware, optional mounting options for PCBs and panels
- Compliance: MIL-DTL-83513, RoHS compatible finishes available, RoHS compliant options include electroless nickel and gold over nickel
Buy the Cannon Series Micro-D Connector: MDM15PH006BF222
Order the Cannon Micro-D series MDM15PH006BF222 now to ensure your application benefits from high reliability, miniature size, and rugged aluminum construction. These connectors are designed for aerospace, military, and industrial uses, supporting up to 100 contacts with high-temperature and EMI/RFI shielding capabilities. With various termination options, corrosion-resistant finishes, and compliance with MIL-DTL-83513 standards, they provide secure, high-density connections in harsh environments. Experience superior performance, precise engineering, and quick online ordering today for your critical interconnect needs.
Buy Cannon high-density micro-D connector series MDM15PH006BF222 now and experience reliable, vibration-resistant performance in demanding aerospace and industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON MDM15PH006BF222?
You can click on the BUY or RFQ button to purchase MDM15PH006BF222 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM15PH006BF222?
You can download the MDM15PH006BF222 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM15PH006BF222?
ITT CANNON
