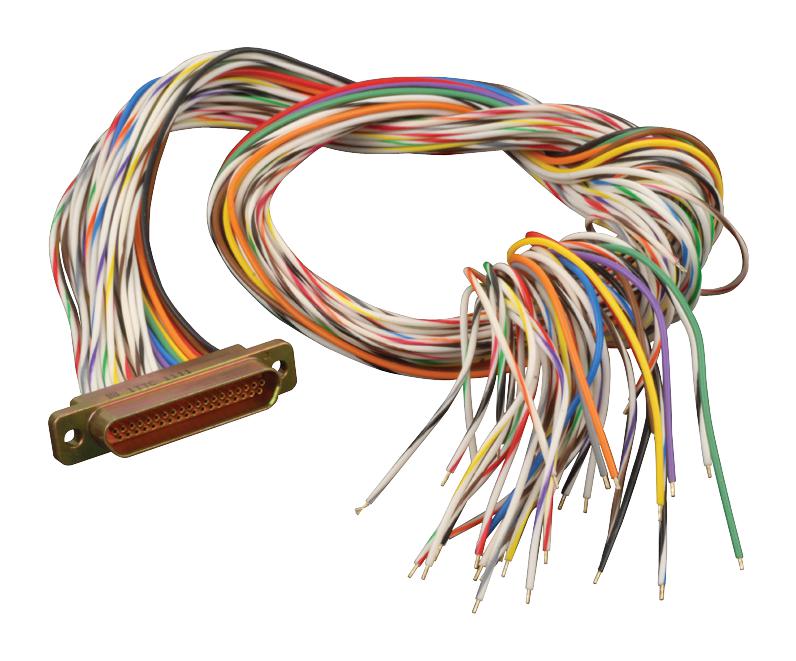

ITT CANNON MDM21SH006BF222 Micro-D Connector
The Micro-D Metal Shell high-density connector offers reliable performance for demanding applications, featuring aluminum shells, gold-plated copper contacts, and a silicone compression interface for moisture sealing. Available in multiple sizes accommodating from 9 to 100 contacts, it is designed for aerospace, military, industrial, and medical markets. Its rugged construction ensures EMI and RFI shielding, durability over 500 mating cycles, and superb mechanical and electrical reliability in harsh environments with temperature ranges from -55°C to +150°C. Compatible with various mounting hardware configurations, it is ideal for space-constrained, high-performance interconnect solutions.
ITT CANNON MDM21SH006BF222 Micro-D Connector Specifications:
- Shell Material: 6061-T6 Aluminum alloy, yellow chromate/cadmium, Type Il, Class 3 over electroless nickel SAE AMS-C-26074, Class 4
- Insulator Material: Liquid Crystal Polymer MIL-M-24519 Type GLCP-30F, Glass-filled polyetherimide MIL-M-24519 Type GST-40F, or Polyester MIL-M-24519 Type GPT-30F
- Contacts: Copper alloy, gold plated, 50 microinch, for #24 - #32 AWG wire
- Mounting Hardware: 300 Series stainless steel passivated or Hysol EE4215/HD3561 black epoxy
- Electrical Ratings: Dielectric withstand voltage 600 VAC at sea level, insulation resistance >100 Megaohms
- Mechanical Durability: 500 mating cycles, mechanical shock 50 G's, vibration 20 G's, temperature -55°C to +150°C
- Contact Resistance: max 8 milliohms, max 10 milliohms at 3A/1mA
- Size: 9 to 100 contacts, various configurations including coaxial and power contacts
- Coupling: Friction/jackscrews, polarization with keystone-shaped shells
- Application: aerospace, military, industrial, medical, high-performance harsh environment environments
- RoHS Compliant: Yes, with optional finishes including electroless nickel, anodized, gold
Buy the ITT Cannon MDM21SH006BF222 – Reliable Micro-D Connector for Industrial Applications
Enhance your project with ITT Cannon's robust Micro-D Connector, featuring aluminum shells, gold contacts, and moisture sealing for superior performance in harsh environments. Whether in aerospace, medical, or industrial applications, this compact and reliable interconnect supports up to 100 contacts with high durability over 500 mating cycles. Easy to install, RoHS compliant, and designed to withstand extreme temperatures from -55°C to +150°C, it ensures dependable connectivity where reliability matters most. Purchase your Micro-D Connector online today and secure a trusted, high-quality interconnect for your critical projects.
Order your ITT Cannon Series MDM21SH006BF222 today and enjoy a highly reliable, high-density interconnect solution for demanding industrial and aerospace projects.
