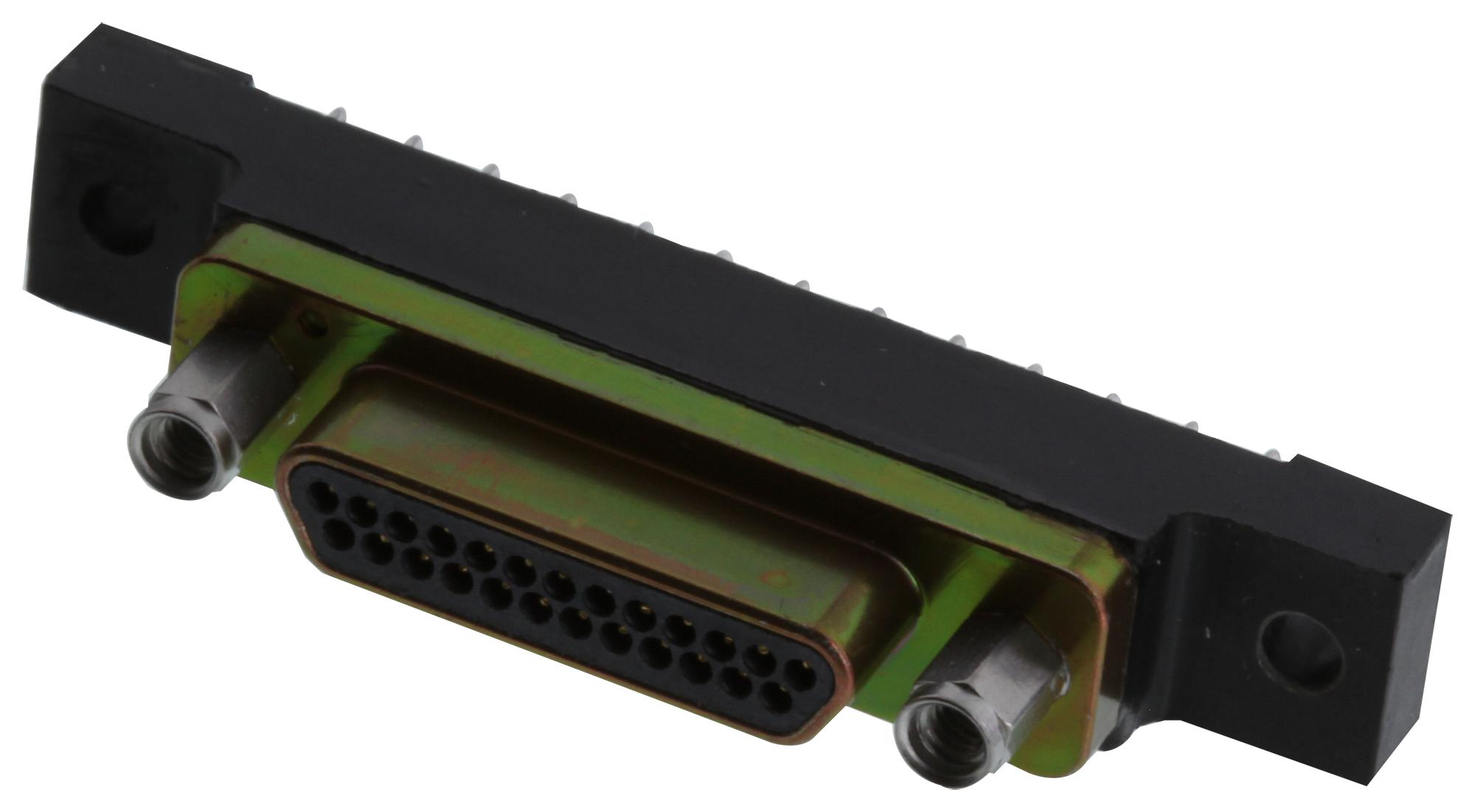

ITT CANNON MDM25PBSP Micro-D Connector
The MDM25PBSP is a high-reliability, miniature interconnect connector with a 0.050 inch contact spacing, designed for board-to-board, cable-to cable, and high-density applications. Crafted from durable aluminum alloy with electroless nickel plating, it features gold-plated copper contacts, and offers excellent EMI/RFI shielding. Suitable for harsh environments, it supports various termination options including crimp and solder, and is capable of handling up to 3A current and 600VAC withstand voltage. It conforms to MIL-DTL-83513 standards, ensuring rugged performance in aerospace, defense, and industrial sectors.
ITT CANNON MDM25PBSP Micro-D Connector Specifications:
- Shell: 6061-T6 Aluminum alloy, yellow chromate/cadmium or electroless nickel finish
- Insulator: Liquid Crystal Polymer, diallyl phthalate, polyester, or polyphenylene sulfide
- Contacts: Copper alloy, gold plated, 50 microinch
- Number of contacts: 25
- Contact spacing: 0.050 inch (1.27 mm centers)
- Current rating: 3 Amps
- Voltage withstand: 600 VAC at sea level, 150 VAC at 70,000 ft altitude
- Insulation resistance: >100 Megohms
- Mechanical: Friction/jackscrews, keystone-shaped shells
- Termination options: crimp, solder pots, and PCB mounting
- Temperature range: -55°C to +125°C
- Conforms to MIL-DTL-83513 standards, with threaded coupling and polarization keyways.
- Supports multiple wiring configurations including uninsulated, insulated, and coaxial contacts.
- Suitable for aerospace, military, industrial, medical, and rugged environments requiring high-density, reliable connections.
Buy the ITT Series Micro-D 25 Contact Connector: MDM25PBSP
Order the ITT Series Micro-D connector MDM25PBSP online today for robust, high-density connections designed to meet MIL-DTL-83513 standards. Perfect for aerospace, military, and industrial use, this miniature connector features a durable aluminum shell with electroless nickel finish, gold-plated contacts, and versatile termination options including crimp and solder. Capable of handling up to 3A, its rugged design ensures high performance in harsh environments. Get your reliable, lightweight, and compact interconnect solution with fast online ordering today.
Buy ITT Series Micro-D 25 Contact Connector MDM25PBSP now and experience unmatched reliability and high-performance in harsh environments.
Frequently Asked Questions
Where can I buy ITT CANNON MDM25PBSP?
You can click on the BUY or RFQ button to purchase MDM25PBSP from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM25PBSP?
You can download the MDM25PBSP datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM25PBSP?
ITT CANNON
