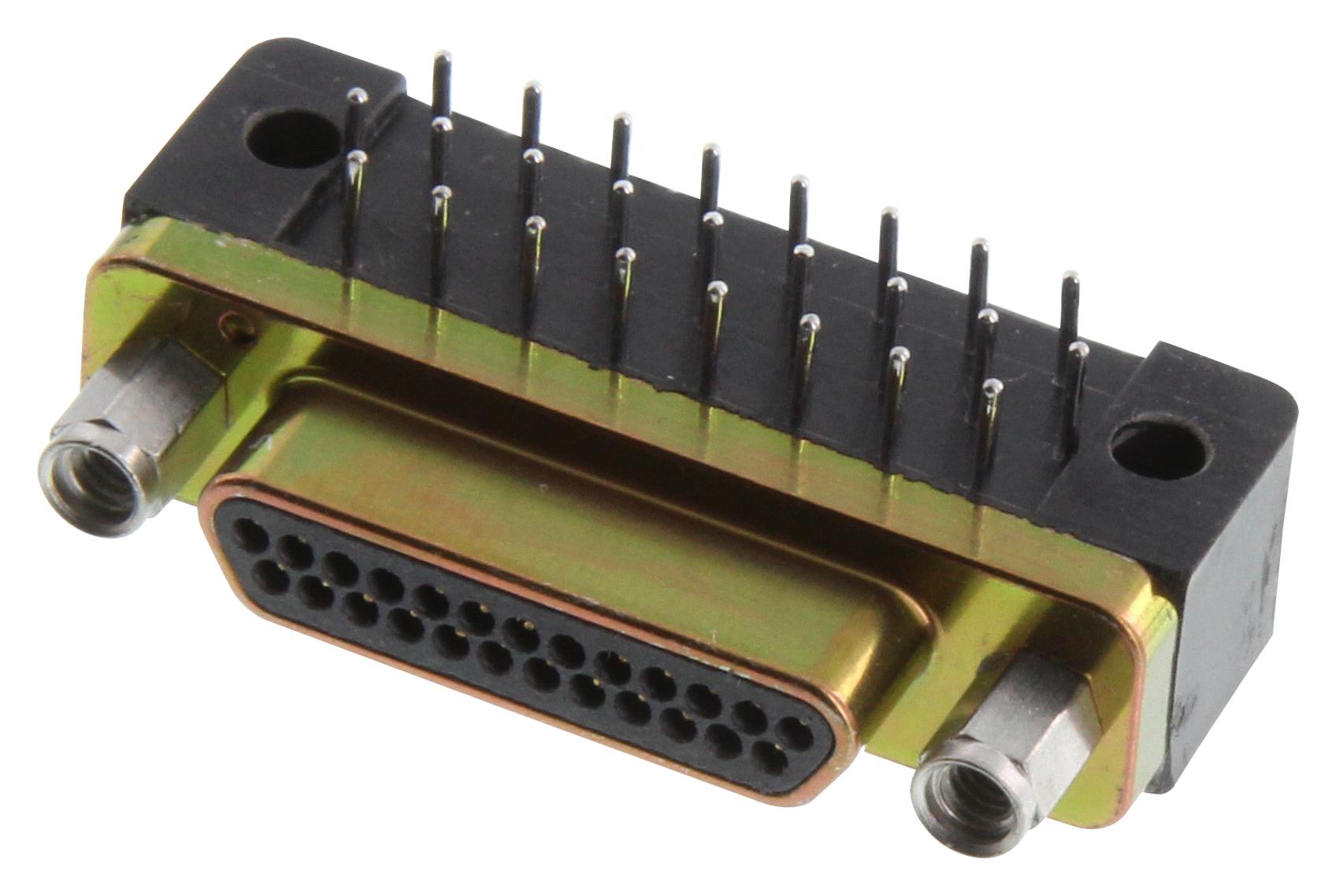

ITT CANNON MDM25PCBRP Micro-D Connector
The Micro-D Metal Shell connector with .050 inch contact spacing offers high reliability and durability for demanding environments, including aerospace, defense, industrial, and medical applications. It features an aluminum alloy shell with yellow chromate/cadmium over electroless nickel finish, and a liquid crystalline polymer insulator with gold-plated copper alloy contacts. Designed for board-to-board, cable-to-cable, and high-density connections, it supports up to 25 contacts, with various termination options such as crimp or solder pot. Its rugged construction ensures optimal EMI/RFI shielding, environmental resistance, and reliable performance in harsh conditions.
ITT CANNON MDM25PCBRP Micro-D Connector Specifications:
- Shell Material: 6061-T6 Aluminum alloy with yellow chromate/cadmium over electroless nickel finish
- Insulator Material: Liquid Crystal Polymer per MIL-M-24519, Type GLCP-30F
- Contacts: Copper alloy, gold plated, 50 microinch (1.27 microns)
- Contact Spacing Centers: 0.050 inch (1.27 mm)
- Number of Contacts: Up to 25 in one connector, various arrangements including power and coaxial options
- Termination Type: Crimp, solder pots, or PCB mount options
- Operating Temperature: -55°C to +125°C (standard), with high-temp variants available
- Electrical: 600 VAC withstand voltage, 5,000 MΩ insulation resistance, max contact resistance 8 milliohms
- Mechanical: Friction/jackscrews for coupling, keystone-shaped shells
- Environmental: Moisture, vibration, shock resistant, meets MIL-DTL-83513 standards
- Compatibility: Supports a variety of wiring and mounting configurations for rugged applications
Buy the Buy ITT Cannon Micro-D .050 Contact Spacing Part Number MDM25PCBRP Online
Discover the ITT Cannon Micro-D connector with .050 inch contact spacing, supporting up to 25 contacts. Its robust aluminum shell with gold contacts ensures excellent EMI shielding and durability. Designed for aerospace, defense, industrial, and medical applications, this connector provides high performance in extreme conditions. Easy to mount with crimp or solder terminations, it guarantees reliable signal and power transfer. Order online now to benefit from superior quality, customized configurations, and fast delivery for your demanding projects.
Buy ITT Cannon Micro-D connector with .050 inch spacing and 25 contacts now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy ITT CANNON MDM25PCBRP?
You can click on the BUY or RFQ button to purchase MDM25PCBRP from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM25PCBRP?
You can download the MDM25PCBRP datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM25PCBRP?
ITT CANNON
