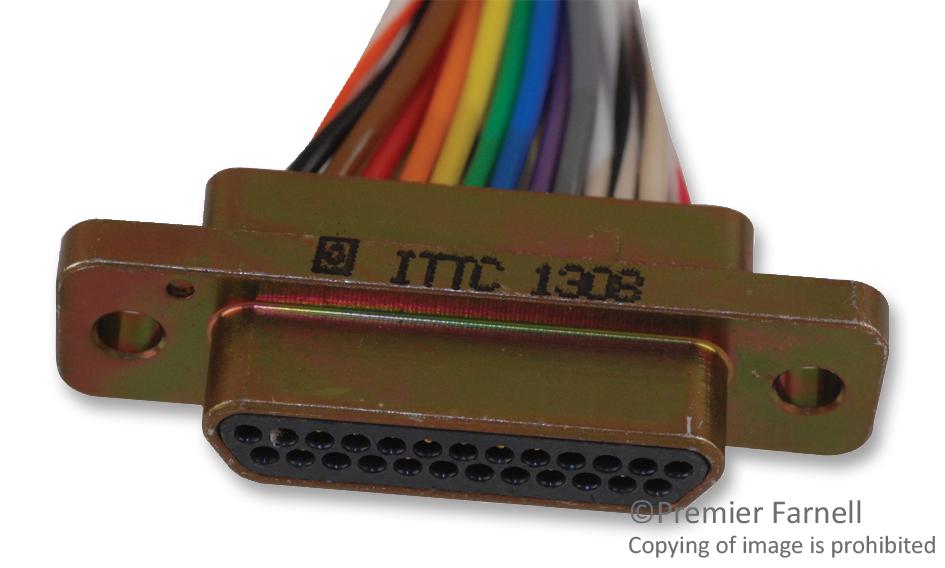

ITT CANNON MDM25PH003B Micro D-sub Connector
The MDM-25PH003B is a rugged, high-performance Micro D-sub connector with 25 gold-plated copper alloy contacts, designed for harsh environments. It features a durable aluminum shell with a yellow chromate and cadmium finish for corrosion resistance, offering excellent moisture resistance and thermal stability. The connector supports wire sizes from 9 to 51, with a 0.091-inch diameter hole, and utilizes a friction coupling mechanism for secure mating. Suitable for military, aerospace, and computer applications, it ensures reliable electrical performance with a maximum current rating of 3A and dielectric withstand voltage of 600 VAC at sea level.
ITT CANNON MDM25PH003B Micro D-sub Connector Specifications:
- Contact Material: Gold-plated copper alloy
- Shell Material: Aluminum
- Shell Finish: Yellow chromate/cadmium over nickel
- Contact Arrangement: 25 positions
- Termination Type: Crimp, M16874/4 #26AWG, colored code
- Wire Range: 9-51 AWG, 0.091 inch diameter hole
- Current Rating: 3A max.
- Dielectric Withstanding Voltage: 600 VAC at sea level
- Insulator Resistance: 5000 megohms min.
- Thermal Shock: -55°C to +125°C
- Vibration Resistance: 20G's, 10-2000 Hz, 12 hours
- Durability: 500 mating cycles
- Moisture Resistance: Insulator resistance > 100 megohms
Buy the Buy Cannon Micro Connector Part Number MDM25PH003B Online
Purchase the Cannon MDM25PH003B today to ensure durable, high-performance connectivity in demanding environments. This micro D-sub connector features 25 gold-plated contacts, a corrosion-resistant aluminum shell, and secure friction coupling, making it ideal for aerospace, military, and computing applications. With a current rating of 3A and dielectric withstand voltage of 600 VAC, it offers consistent electrical performance. Its moisture resistance, thermal stability, and rugged construction guarantee long-lasting operation in challenging conditions. Order now for reliable, professional-grade connectivity solutions.
Get Cannon MDM25PH003B today—robust, moisture-resistant micro connector for aerospace and military applications with high electrical reliability.
Frequently Asked Questions
Where can I buy ITT CANNON MDM25PH003B?
You can click on the BUY or RFQ button to purchase MDM25PH003B from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM25PH003B?
You can download the MDM25PH003B datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM25PH003B?
ITT CANNON
