ITT CANNON MDM37PCBRP Micro-D Circular
The MDM37PCBRP is a compact, high-density, microminiature circular connector featuring a rugged aluminum shell, gold-plated copper contacts, and a variety of termination options. Designed for demanding aerospace, military, and industrial applications, it offers excellent EMI/RFI shielding, reliable mating with a secure bayonet coupling, and a maximum of 37 contacts arranged in a space-efficient layout. The connector supports various mounting configurations, including panel, wall, or PCB mounting, and conforms to MIL-DTL-83513 standards for high performance in harsh environments. Its durable construction ensures long service life with multiple mating cycles and resistance to vibration and temperature extremes.
ITT CANNON MDM37PCBRP Micro-D Circular Specifications:
- Shell Material: 6061-T6 Aluminum alloy with yellow chromate/Cadmium finish, Type II, Class 3 over electroless nickel per SAE AMS-C-26074, Class 4
- Insulator Material: Liquid Crystal Polymer per MIL-M-24519, Type GLCP-30F
- Contacts: Copper alloy, gold plated, 50 microinch minimum, crimp termination
- Contact Spacing Centers: 0.050 inches (1.27 mm)
- Number of Contacts: 37 (standard layout)
- Contact Arrangement: 37 contacts in a space-efficient configuration
- Contact Type: P—Pin, S—Socket
- Termination Type: Crimp, Solder pot, or harness styles (including pre-wired options)
- Electrical: Dielectric Withstanding Voltage 600 VAC, Insulation Resistance > 100 MΩ, Contact Resistance < 8 mΩ
- Mechanical: Durability of 500 mating cycles, vibration resistance up to 20 G's, temperature range -55°C to +125°C
- Hardware: Includes threaded coupling nut made of stainless steel, passivated
- Mounting: Panel, PCB (right angle or straight), or wall mount compatible
- Standards: Conforms to MIL-DTL-83513 for high-performance environments

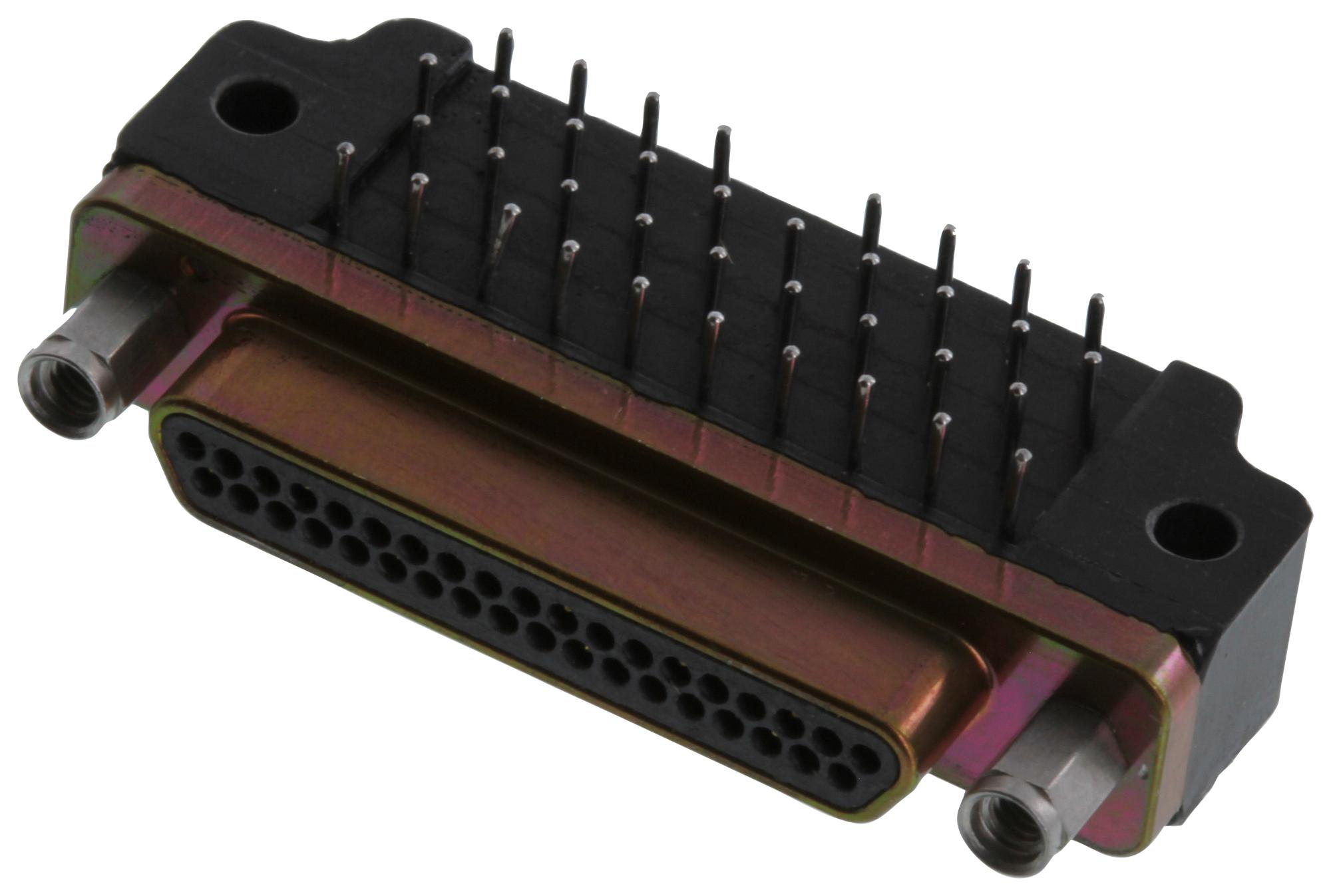

Buy the Buy ITT Cannon Micro-D Circular Connector Part Number MDM37PCBRP Online
Enhance your project with the ITT Cannon Micro-D Circular connector part number MDM37PCBRP. Featuring a durable aluminum shell, gold-plated contacts, and versatile mounting options, this high-performance connector is ideal for demanding aerospace, military, and industrial environments. It offers reliable EMI/RFI shielding, up to 37 contacts in a compact layout, and conforms to MIL-DTL-83513 standards. Trust ITT Cannon’s proven quality for long-lasting, vibration-resistant, and temperature-tolerant connections, ensuring system integrity in harsh conditions.
Order your ITT Cannon MDM37PCBRP high-density connector today and ensure reliable, rugged performance for aerospace, military, and industrial applications.
Frequently Asked Questions
Where can I buy ITT CANNON MDM37PCBRP?
You can click on the BUY or RFQ button to purchase MDM37PCBRP from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM37PCBRP?
You can download the MDM37PCBRP datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM37PCBRP?
ITT CANNON
