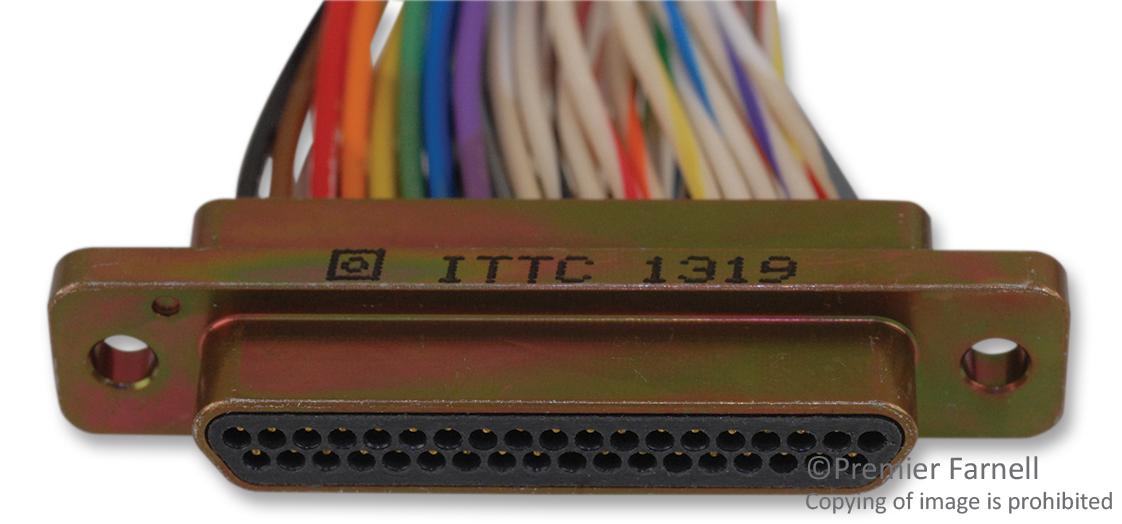

ITT CANNON MDM37PH003B Micro D-Sub Connector
The MDM series Micro Metal Shell D-sub connectors feature 0.05-inch contact spacing and are designed for applications requiring highly reliable, miniature, lightweight connectors with high-density contact configurations. Available in eight shell sizes accommodating from 9 to 100 contacts, these connectors also offer special arrangements for power and coaxial contacts. They are engineered to meet the demanding requirements for environmental resilience, high performance, and ruggedness, including moisture sealing. The aluminum shells provide enhanced strength and durability, preventing chipping, cracking, or breaking. Additional features include electromagnetic interference (EMI) and radio-frequency interference (RFI) shielding, multiple indent crimp contact terminations, fixed contact retention via epoxy, and a maximum current rating of 3A.
ITT CANNON MDM37PH003B Micro D-Sub Connector Specifications:
- Shell Material: 6061-16 Aluminum alloy, yellow chromate/oran mies oxide finish
- Insulator: Liquid Crystal Polymer per MIL-M-24519, Type GLCP-3OF, polyphenylene sulfide, polyester
- Contact Spacing: 0.050 (1.27) inches
- Contact Material: Copper alloy, gold plated
- Contact Arrangement: Ranges from 9 to 100 contacts, includes configurations for power and coaxial contacts
- Cable Size: No. 26 AWG to No. 32 AWG, with options for solder pot and crimp termination
- Shell Styles: Plug and receptacle, design employed for military and industrial standards
- Dimensions: Vary based on size, with mounting hole diameters of #2-56 UNC-2A, #4-40 UNC-2A for size 100
- Mechanical Features: Friction/jackscrews, Keystone-shaped shells for polarization, epoxy fixed contacts
- Electrical Ratings: Max current 3A per contact, dielectric withstanding voltage 600 VAC at sea level
- Environmental Standards: MIL-STD-1344 compliance, moisture resistance, salt spray resistance
- Additional features: EMI/RFI shielding, thread lock assemblies, float mounts, and hardware kits available
- Temperature Range: -55°C to +105°C typically, depending on specific configuration
Buy the Briarcanncct MDM37PH003B – Reliable Micro Connectors for Industrial Applications
Purchase the Briarcanncct Micro D-Sub Connector series online today to enjoy superior reliability, environmental resistance, and high-density contact configurations. Designed for demanding industrial applications, these connectors feature moisture sealing, EMI/RFI shielding, and a rugged construction with aluminum shells. Supporting from 9 to 100 contacts with various termination options, they are perfect for high-performance electronic systems. Buying online ensures fast delivery, competitive prices, and access to expert support, making it the ideal choice for engineers and technicians needing dependable, miniature connectors for critical applications.
Buy Briarcanncct MDM37PH003B now and experience unmatched reliability and high-density performance for demanding industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON MDM37PH003B?
You can click on the BUY or RFQ button to purchase MDM37PH003B from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM37PH003B?
You can download the MDM37PH003B datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM37PH003B?
ITT CANNON
