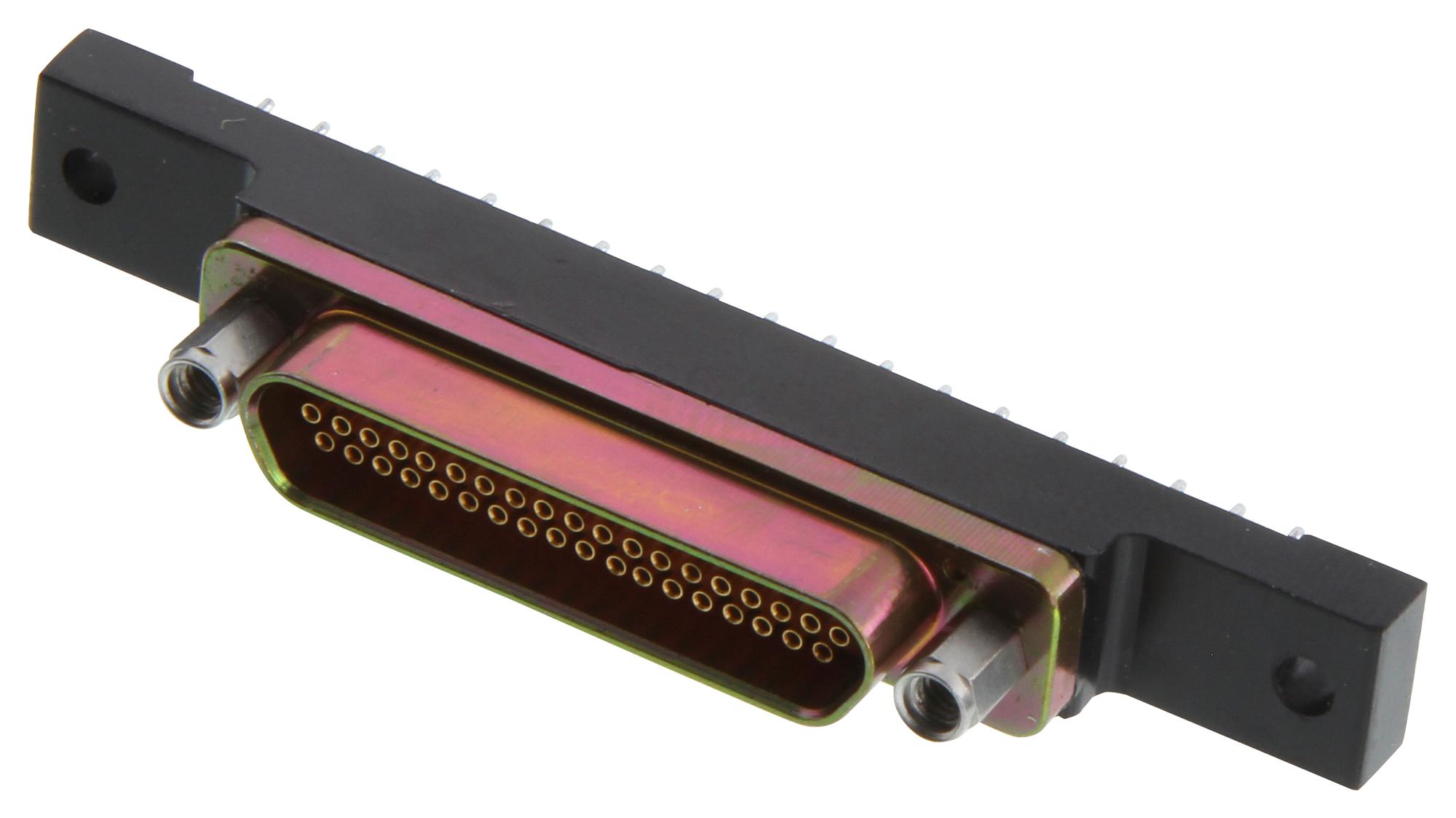

ITT CANNON MDM37SBSP Micro-D Connector
The Micro-D Metal Shell connector with .050 inch contact spacing offers high reliability and ruggedness, using aluminum shells with electroless nickel plating for EMI shielding. It accommodates 37 contacts with precise dimensions and various termination options for harsh environments like aerospace, medical, and industrial applications. The connector features high-density design, polarization keyways to prevent cross plugging, and compatible with multiple wire gauges. It is suitable for applications requiring secure, lightweight interconnections with excellent vibration and shock resistance, meeting MIL-DTL-83513 standards for durability and performance in demanding conditions.
ITT CANNON MDM37SBSP Micro-D Connector Specifications:
- Shell Material: 6061-T6 Aluminum alloy with yellow chromate/cadmium, Type Il, Class 3 finish over electroless nickel
- Insulator Material: Liquid Crystal Polymer or Glass-filled Polyphenylene sulfide, depending on model
- Contacts: Copper alloy, gold plated, 50 microinch minimum
- Contacts Quantity: 37 contacts
- Contact Spacing Centers: 0.050 inches (1.27 mm)
- Contact Types: P (Pin), S (Socket)
- Termination Types: Solder pots, crimp, or insulated wires with crimp sleeves
- Coaxial Options: RG-178/U for specific configurations
- Operating Temperature Range: -55°C to +125°C
- Dielectric Withstanding Voltage: 600 VAC at sea level
- Insulation Resistance: > 100 megaohms
- Durability: 500 cycles
- Vibration Resistance: 20 G’s, 12 hours
- Shock Resistance: 50 G’s, 6 ms
- Contact Resistance: ≤8 milliohms
- Hardware: Stainless steel, passivated
- Compliance: MIL-DTL-83513
Buy the Buy ITT Cannon Micro-D Connector Part Number MDM37SBSP Online
Order your ITT Cannon Micro-D Connector number MDM37SBSP today and ensure reliable, lightweight, and high-performance interconnections in demanding environments like aerospace, medical, and industrial systems. Designed with aluminum shells and gold-plated contacts, this connector offers robust EMI shielding, polarization keyways, and a wide range of termination options. Its high durability and shock resistance meet MIL-DTL-83513 standards, making it the ideal choice for critical applications requiring secure and reliable data, signal, and power transfer in harsh conditions. Purchase online now for swift delivery and superior performance.
Get ITT Cannon Micro-D Connector today—built for harsh environments with high-density, lightweight design for aerospace and industrial applications.
Frequently Asked Questions
Where can I buy ITT CANNON MDM37SBSP?
You can click on the BUY or RFQ button to purchase MDM37SBSP from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM37SBSP?
You can download the MDM37SBSP datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM37SBSP?
ITT CANNON
