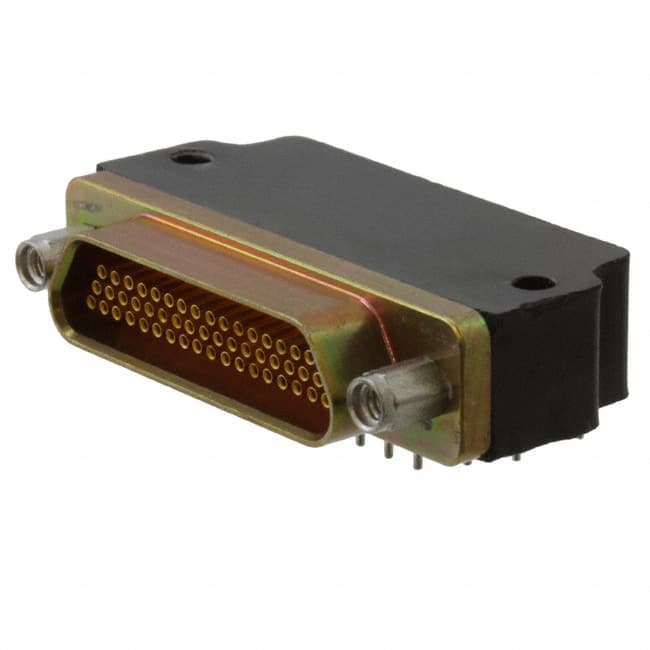

ITT CANNON MDM51SCBRP Micro Socket
The Cannon Micro Series MICRO socket features a metal shell, gold-plated copper alloy contacts, and a right-angle PCB termination. Designed for reliable electrical connections, it can handle up to 3A current and withstand voltages up to 600 VAC at sea level. Its rugged construction includes aluminum shell with yellow chromate/cadmium over nickel finish, liquid crystalline polymer insulators for contact sizes 9 to 100, and Diallyl phthalate for larger contact arrangements. It ensures durability with resistance to thermal shock, vibration, moisture, and salt spray, making it ideal for demanding electronic applications.
ITT CANNON MDM51SCBRP Micro Socket Specifications:
- Contact Material: Gold plated copper alloy
- Contact Resistance: 8 milliohms max.
- Termination Type: Condensed Right Angle PCB
- Shell Material: Aluminum
- Shell Finish: Yellow Chromate/Cadmium over Nickel
- Insulator Material: Liquid crystalline polymer (contacts 9-100), Diallyl phthalate (7C2, 24C4 contact arrangements)
- Current Rating: 3A max.
- Dielectric Withstanding Voltage: 600 VAC at sea level, 150 VAC at 70,000 ft altitude
- Insulator Resistance: 5000 megohms min.
- Thermal Shock Resistance: -55°C to +125°C
- Physical Shock: 50 G's, 3 axes, 6 ms sawtooth pulse
- Vibration Resistance: 20 G's, 10-2000 Hz, 12 hours
- Durability: 500 mating cycles at 500 CPH max.
- Moisture Resistance: Insulator resistance > 100 megohms
- Salt Spray Resistance: 48 hours
Buy the Cannon Series MICRO Micro Socket: MDM51SCBRP
Purchase the Cannon Micro Series MICRO socket MDM51SCBRP online today and enjoy highly durable electrical connections with corrosion-resistant aluminum shell, gold-plated contacts, and secure PCB termination. Designed to withstand thermal shocks, vibration, moisture, and salt spray, this reliable socket is perfect for demanding electronic applications. Its compact right-angle design ensures easy installation and long-lasting performance, making it an ideal solution for industrial, medical, or communications equipment where robustness and dependable contact integrity are critical.
Buy Cannon Micro Series MICRO socket MDM51SCBRP now and experience unmatched reliability and performance in demanding electronic connections.
Frequently Asked Questions
Where can I buy ITT CANNON MDM51SCBRP?
You can click on the BUY or RFQ button to purchase MDM51SCBRP from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM51SCBRP?
You can download the MDM51SCBRP datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM51SCBRP?
ITT CANNON
