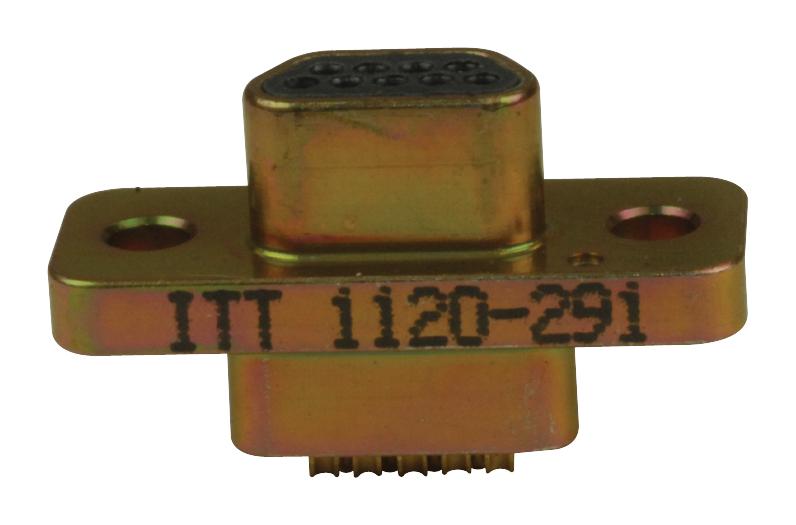

ITT CANNON MDM9PSBA174 Industrial connector
The MDM-9PSB-A174 is a compact industrial connector with a metal shell designed for reliable electronic connections in demanding environments. Featuring a 9-contact arrangement with gold-plated copper alloy contacts and solder pot termination compatible with #26AWG harness wires, it ensures low contact resistance and durability. The aluminum shell with electroless nickel finish provides corrosion resistance, while the liquid crystalline polymer insulators offer excellent thermal stability. Suitable for applications requiring up to 3A current, it withstands dielectric voltages of 600 VAC and delivers high insulator resistance, making it ideal for rugged industrial settings.
ITT CANNON MDM9PSBA174 Industrial connector Specifications:
- Contact Material: Gold plated copper alloy
- Contact Size: 9 to 100
- Termination Type: Solder pot for #26AWG max. harness wire
- Shell Material: Aluminum
- Shell Finish: Electroless Nickel
- Insulator Material: Liquid crystalline polymer (contact size 9 to 100), Diallyl phthalate (7C2 or 24C4 arrangements)
- Current Rating: 3A max.
- Dielectric Withstanding Voltage: 600 VAC at sea level, 150 VAC at 70,000' altitude
- Insulator Resistance: 5000 megohms min.
- Thermal Shock Resistance: -55°C to +125°C
- Physical Shock: 50 G's, 3 axes, 6 ms sawtooth pulse
- Vibration: 20G's, 10-2000 Hz, 12 hours
- Durability: 500 mating cycles
- Moisture Resistance: Insulator resistance > 100 megohms, Salt spray for 48 hours
- Hardware: B .092 diameter mounting holes
- Coupling: Friction coupling
Buy the Cannon MDM-9PSB-A174 – Reliable Industrial Connector for Demanding Environments
Secure your connections with the MDM-9PSB-A174 industrial connector. Featuring a durable metal shell, gold-plated contacts, solder pot termination, and excellent resistance to thermal shocks, vibrations, and moisture. Ideal for demanding industrial environments where reliability and durability are critical. Easy to install with friction coupling and compatible with #26AWG harness wires, this connector ensures long-lasting performance. Purchase online today and enhance the robustness of your electronic systems with this high-quality industrial component designed for challenging conditions.
Buy Cannon MDM-9PSB-A174 now and experience unmatched reliability and performance in rugged industrial applications.
Frequently Asked Questions
Where can I buy ITT CANNON MDM9PSBA174?
You can click on the BUY or RFQ button to purchase MDM9PSBA174 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM9PSBA174?
You can download the MDM9PSBA174 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM9PSBA174?
ITT CANNON
