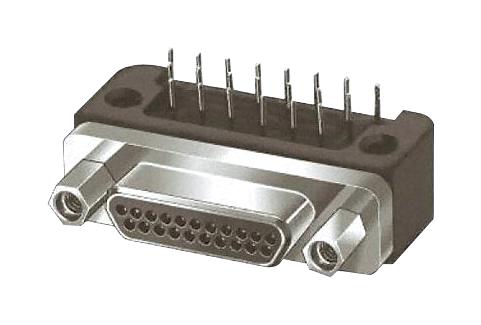

ITT CANNON MDM9SCBRA174F222 Micro Series Socket
The Micro Series MDM-9SCBR-A174-F222 is a high-quality metal shell socket designed for reliable electrical connections in demanding applications. It features a gold-plated copper alloy contact for superior conductivity and durability, with crimp termination for secure wiring. The aluminum shell is finished with electroless nickel for corrosion resistance. Suitable for use in micro-series electronic assemblies, it supports a maximum current of 3A and withstands voltages up to 600 VAC at sea level. Its robust design ensures reliability across various environmental conditions, including thermal shock and vibration resistance.
ITT CANNON MDM9SCBRA174F222 Micro Series Socket Specifications:
- Contact Material: Gold-plated copper alloy
- Contact Arrangement: 9 contacts
- Termination Type: Crimp
- Shell Material: Aluminum
- Shell Finish: Electroless Nickel
- Insulator Material: Liquid crystalline polymer for sizes 9-100; Diallyl phthalate for 7C2 or 24C4
- Current Rating: 3A max.
- Dielectric Withstanding Voltage: 600 VAC at sea level, 150 VAC at 70,000 feet altitude
- Insulator Resistance: 5000 megohms min.
- Thermal Shock Resistance: -55°C to +200°C
- Physical Shock: 50 G's over 3 axes, 6 ms pulse
- Vibration Resistance: 20 G's, 10-2000 Hz for 12 hours
- Durability: 500 mating/unmating cycles
- Moisture Resistance: Insulator resistance > 100 megohms
- Salt Spray Resistance: 48 hours
Buy the Buy Cannon Micro Series MDM-9SCBR-A174-F222 Online
Discover the high-performance Micro Series MDM-9SCBR-A174-F222 socket, ideal for demanding electronic connections. Featuring a robust aluminum shell with electroless nickel finish, it provides excellent corrosion resistance. The gold-plated copper alloy contacts offer superior electrical conductivity and durability, supporting up to 3A and 600 VAC. Designed for micro-electronic assemblies, it withstands thermal shocks, vibration, and moisture, making it suitable for various industrial applications. Order online now for fast delivery and reliable performance in your projects.
Get Cannon MDM-9SCBR-A174-F222 today—designed for high reliability, secure connections, and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy ITT CANNON MDM9SCBRA174F222?
You can click on the BUY or RFQ button to purchase MDM9SCBRA174F222 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MDM9SCBRA174F222?
You can download the MDM9SCBRA174F222 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MDM9SCBRA174F222?
ITT CANNON
