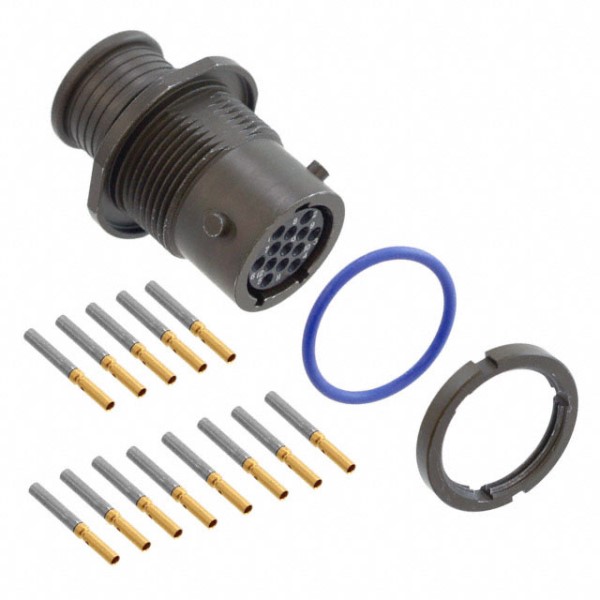

ITT CANNON MKJ3A7W813SN Circular Connector Socket Receptacle
The ITT CANNON MKJ3A7W8-13SN is a robust circular connector designed for demanding applications requiring secure and reliable connections. It utilizes a bayonet coupling mechanism for ease of use and a jam nut receptacle for secure mounting. The connector is suitable for environmental plug and receptacle applications, particularly those utilizing banding or overmolding platforms. With a current rating of 5 Amps and a voltage rating of 500 VAC RMS, it provides dependable performance across a wide range of industrial and commercial settings. It meets vibration and shock requirements per MIL-STD-1344 and offers EMI shielding effectiveness of 40dB.
ITT CANNON MKJ3A7W813SN Circular Connector Socket Receptacle Specifications:
- Series: Bayonet Coupling
- Class: Environmental Plug and Receptacle with Banding/Overmolding Platform
- Shell Style: Jam Nut Receptacle
- Shell Size: 7
- Plating: Aluminum/OD Cad
- Contact Arrangement: 23 Contacts Size 13
- Gender: Socket, Crimp, Removable
- Polarization: Normal (150° 210°)
- Contact Size / Spacing: #23 / 0.076 inches (1.9 mm)
- Wire Accommodation: #22 - #28 AWG
- Current Rating: 5 Amps Maximum
- Voltage Rating: 500 VAC RMS Sea Level
- Insulator Resistance: 5000 Megaohms Minimum
- Operating Temperature: -55°/+150°
- Contact Resistance: 8 Milliohms Maximum
- Vibration: 20 g′ in Accordance with MIL-STD-1344 Method 2005, Condition IV
- Shock: 300 g′ (MKJ1) 50 g′ (MKJ0 and MKJ4) in Accordance with MIL-STD-1344 Method 2004, Condition E
- EMI Shielding Effectiveness: 40dB Attenuation, 100 MHz to 1000 MHz
Buy the MKJ3A7W8-13SN ITT CANNON Circular Connector Socket Receptacle | myMectronic
Purchase the ITT CANNON MKJ3A7W8-13SN securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy ITT CANNON MKJ3A7W813SN?
You can click on the BUY or RFQ button to purchase MKJ3A7W813SN from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MKJ3A7W813SN?
You can download the MKJ3A7W813SN datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MKJ3A7W813SN?
ITT CANNON
