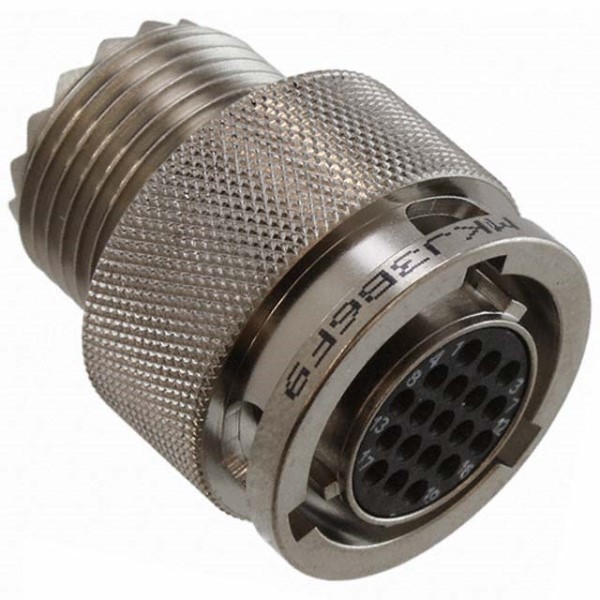

ITT CANNON MKJ3B6F919SN Circular Bayonet Connector
The ITT CANNON MKJ3B6F9-19SN is a circular bayonet connector within the Trinity MKJ series. This connector offers a secure bayonet coupling mechanism and is designed for environmental plug and receptacle applications with threaded accessory attachment. It boasts a straight plug shell style, a size 6 shell, and aluminum/electroless nickel plating for corrosion resistance. With 23 contacts of size 19, it supports wire accommodation from #22 to #28 AWG and provides a maximum current rating of 5 Amps and a voltage rating of 500 VAC RMS at sea level. It is designed to withstand vibration and shock conditions as per MIL-STD-1344 and offers EMI shielding effectiveness of 40dB.
ITT CANNON MKJ3B6F919SN Circular Bayonet Connector Specifications:
- Series: Bayonet Coupling
- Class: Environmental Plug and Receptacle Threaded Accessory Attachment
- Shell Style: Straight Plug
- Shell Size: 6
- Plating: Aluminum/Electroless Nickel
- Contact Arrangement: 23 Contacts Size 19
- Gender: Socket, Crimp, Removable
- Polarization: Normal (150° 210°)
- Contact Size / Spacing: #23 / 0.076 inches (1.9 mm)
- Wire Accommodation: #22 - #28 AWG
- Current Rating: 5 Amps Maximum
- Voltage Rating: 500 VAC RMS Sea Level
- Insulator Resistance: 5000 Megaohms Minimum
- Operating Temperature: -55°/+150°
- Contact Resistance: 8 Milliohms Maximum
- Vibration: 20 g′ in Accordance with MIL-STD-1344 Method 2005, Condition IV
- Shock: 300 g′ (MKJ1) 50 g′ (MKJ0 and MKJ4) in Accordance with MIL-STD-1344 Method 2004, Condition E
- EMI Shielding Effectiveness: 40dB Attenuation, 100 MHz to 1000 MHz
