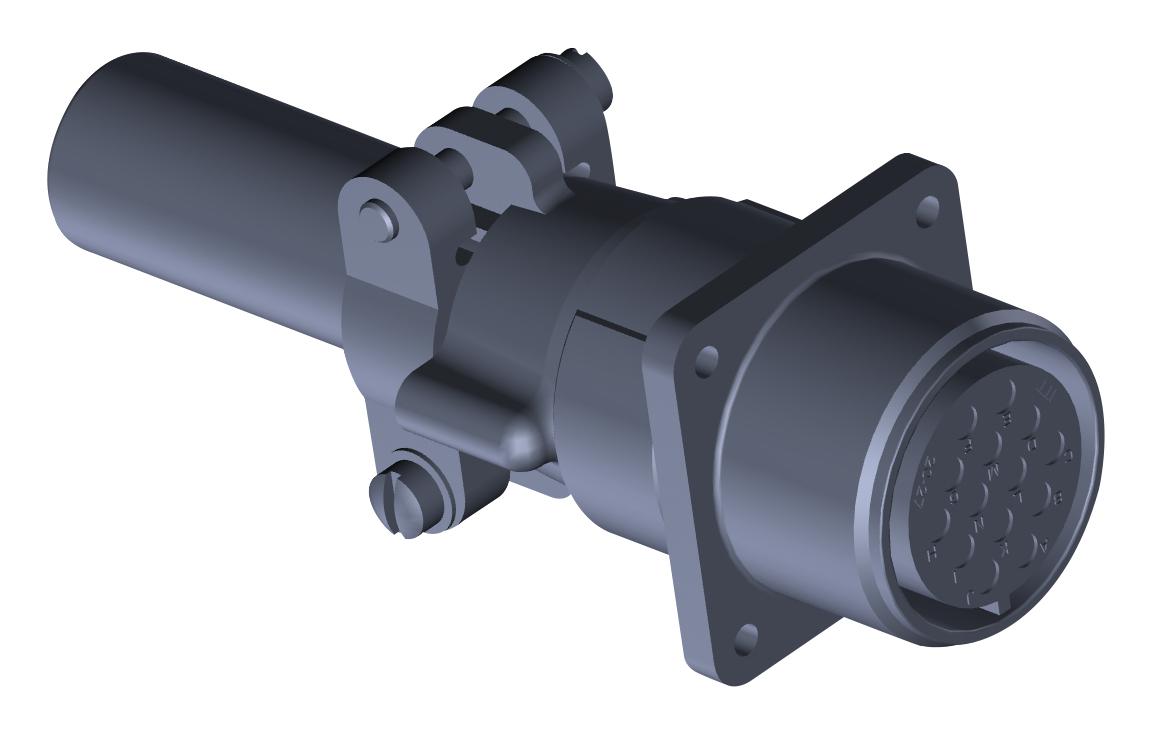

ITT CANNON MS3100E2027S Circular Connector
The circular connector offers a durable wall-mounting receptacle with threaded coupling, suitable for industrial and automation applications. It features 14 solder cup contacts with hard silver plating, insulation resistance over 1000 MΩ, and a test voltage of 1600 Vrms. With an IP65 rating, it is salt spray resistant for 500 hours and supports up to 500 mating cycles. Constructed from aluminum alloy with olive drab chromate coating, it ensures reliable performance in harsh environments. It is ideal for heavy-duty electrical connections requiring robust mechanical and environmental protection.
ITT CANNON MS3100E2027S Circular Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate coating
- Shell Size: 20
- Contact Arrangement: 20-27
- Number of Contacts: 14
- Contact Type: Solder cup
- Contact Plating: Hard silver
- Contact Resistance: aan
- Operating Voltage: Must comply with IEC 60364-4-41 for voltages >50V
- Insulator Resistance: > 1000 MΩ according to VG95319 and VG95210
- Test Voltage: 1600 Vrms
- Air and Creepage Path: Min 1.4mm
- Ambient Temperature Range: -55°C to +125°C
- IP Rating: IP65 according to DIN 40050
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500
- Coupling Torque: Closing 9 Nm max, Opening 0.7 Nm min
- Shell Material: Aluminum alloy with olive drab chromate coating
- Insulator and Grommet Material: Neoprene
- Wire Stripping Diameter: 6.2 mm
Buy the Cannon MS3100E20-27S – Reliable Circular Connector for Industrial Applications
Order the Cannon MS3100E20-27S circular connector online today to ensure robust, reliable electrical connections in industrial and harsh environments. Featuring 14 solder cup contacts with hard silver plating, IP65 protection, and salt spray resistance for 500 hours, this connector is designed for demanding applications. Constructed from durable aluminum alloy with olive drab chromate coating, it supports 500 mating cycles and can operate within -55°C to +125°C. Easy to install with a coupling torque of 9 Nm maximum, it guarantees long-term performance and environmental protection.
Buy Cannon MS3100E20-27S now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON MS3100E2027S?
You can click on the BUY or RFQ button to purchase MS3100E2027S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3100E2027S?
You can download the MS3100E2027S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3100E2027S?
ITT CANNON
