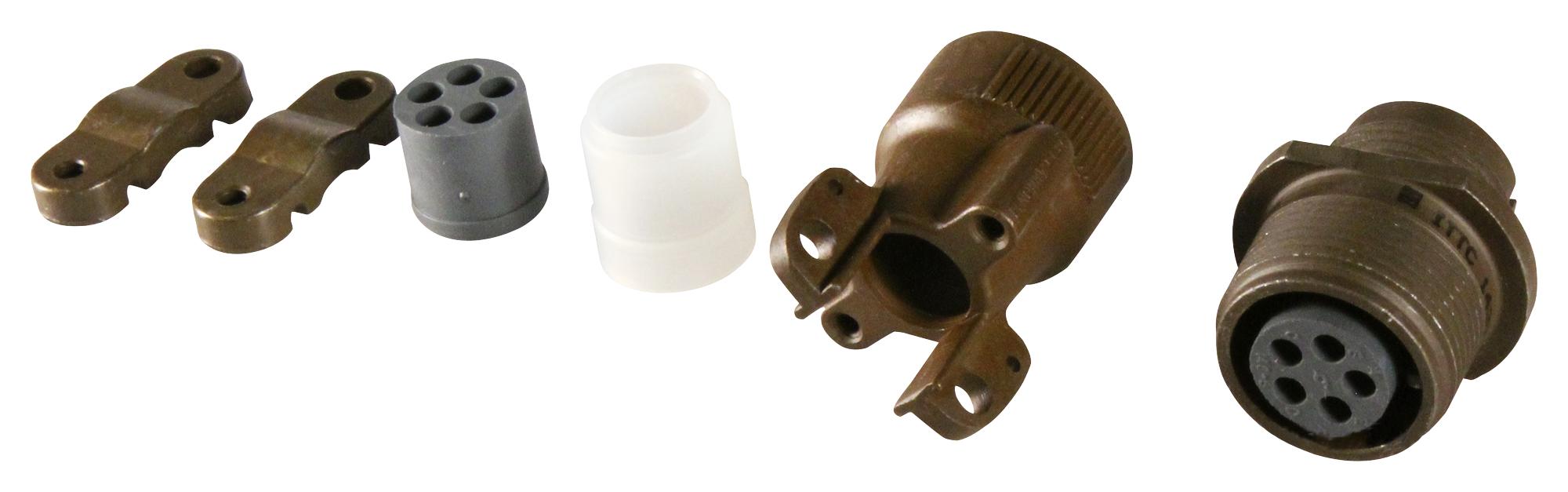

ITT CANNON MS3101F14S5S 5-Way Solder Receptacle Connector
The MS3101F14S-5S is a durable 5-way solder receptacle connector with silver-plated copper contacts, designed for harsh environments. Part of the MIL-C-5015 series, it features threaded coupling, an end bell with cable clamp, and bushing. Built for extreme conditions like high altitude, moisture, and vibration, it is ideal for defense, military, and aerospace applications. Rated at 22A and 1050V, it operates from -55°C to +125°C, ensuring reliable, high-performance electrical connections in demanding environments.
ITT CANNON MS3101F14S5S 5-Way Solder Receptacle Connector Specifications:
- Shell Material: Aluminium alloy with olive drab chromate coating
- Contact Material: Copper alloy, silver-plated
- Number of contacts: 5
- Contact Type: Solder Cup
- Contact Resistance: Aan
- Operating Voltage: 1050 Vrms
- Current Rating: 22A
- Insulator Resistance: > 1000 MO
- Test Voltage: 1050 Vrms
- Ambient Temperature Range: -55°C to +125°C
- Ingress Protection: IP65 according to DIN 40 050
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500
- Coupling Torque: Closing 3.6 Nm max / Opening 0.35 Nm min
- Shell Size: 148
- Contact Arrangement: 148-5
- Size/Size S: 15/15S/16/16S
- Threads: Threaded coupling
- Gage: VG95234, part 4
- Insulator and Grommet Material: Neoprene
- Wire Stripping Length: 6.2 mm
Buy the Cannon Series MIL-C-5015 5-Way Solder Receptacle Connector: MS3101F14S5S
Enhance your electrical assemblies with the Cannon Series MIL-C-5015 5-Way Solder Receptacle Connector. Featuring silver-plated copper contacts, robust aluminium alloy shell, and IP65 protection, it ensures reliable performance in extreme environments. Rated at 22A and 1050V, with a temperature range from -55°C to +125°C, this connector withstands vibration, moisture, and salt spray. Suitable for defense, aerospace, and military applications, order online today to secure durable, high-performance connections for your critical projects.
Get Cannon Series MIL-C-5015 MS3101F14S-5S today—built for demanding military and aerospace applications with high reliability and extreme environmental resistance.
Frequently Asked Questions
Where can I buy ITT CANNON MS3101F14S5S?
You can click on the BUY or RFQ button to purchase MS3101F14S5S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3101F14S5S?
You can download the MS3101F14S5S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3101F14S5S?
ITT CANNON
