ITT CANNON MS3102E2029SW Industrial Circular Connector
The MS3102E20-29SW is a robust circular connector featuring a threaded coupling, shell size 20, and 20-29 contact arrangement with 17 solder cup contacts. Made from aluminum alloy with olive drab chromate coating, it offers IP65 protection, salt spray resistance for 500 hours, and withstands operating temperatures from -55°C to +125°C. The connector supports 500 mating cycles, with a coupling torque of up to 9 Nm for secure connection. Suitable for demanding industrial and military applications requiring reliable electrical performance and environmental protection.
ITT CANNON MS3102E2029SW Industrial Circular Connector Specifications:
- Shell Material: Aluminum alloy
- Shell Plating: Olive drab chromate coating over cadmium plating
- Contact Type: Solder cup
- Number of contacts: 17
- Contact Arrangement: 20-29
- Contact Plating: Hard silver
- Contact Resistance: Aan
- Voltage Rating: Suitable for voltages >50V when used per DIN VDE 410, IEC 60364-4-41
- Insulator Resistance: >1000 MO as per VG95319, part 2, test no. 5.12
- Test Voltage: 1600 Vrms
- Operating Temperature: -55°C to +125°C
- Ingress Protection: IP65 according to DIN 40 050
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500 min
- Coupling Torque: Closing max 9 Nm, opening min 0.7 Nm
- Insulator Material: Neoprene
- Dimensions and assembly details: See catalog

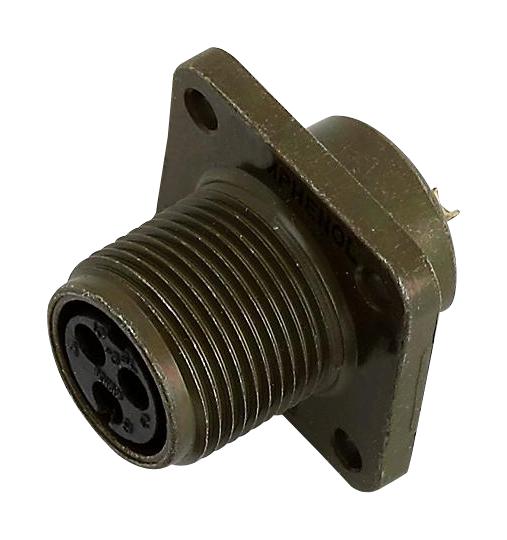

Buy the Cannon Series MIL-C-5015 Circular Connector: MS3102E20-29SW
Purchase the Cannon Series MIL-C-5015 MS3102E20-29SW connector online today and benefit from a durable, environmentally sealed design ideal for harsh conditions. Featuring 17 solder cup contacts in shell size 20, this connector offers IP65 protection, salt spray resistance for 500 hours, and operation within -55°C to +125°C. Its aluminum shell with olive drab chromate coating provides excellent durability, while the locking mechanism supports up to 500 mating cycles. Perfect for industrial, aerospace, or military projects requiring reliable, high-performance electrical connectivity.
Order your Cannon Series MIL-C-5015 MS3102E20-29SW connector today and ensure secure, reliable connections for demanding industrial and military applications.
Frequently Asked Questions
Where can I buy ITT CANNON MS3102E2029SW?
You can click on the BUY or RFQ button to purchase MS3102E2029SW from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3102E2029SW?
You can download the MS3102E2029SW datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3102E2029SW?
ITT CANNON
