ITT CANNON MS3102E2212S Circular Connector
The MS3102E22-12S is a circular shell connector designed for rugged applications with MIL-DTL 5015 standards. It features a threaded coupling and box mounting receptacle with a shell size 22. The connector has 2 solder cup contacts, plated with hard silver for durability, and supports up to 22-12 contact arrangement. Constructed from aluminum alloy with olive drab chromate coating, it provides IP65 protection, salt spray resistance for 500 hours, and can withstand -55°C to +125°C. Suitable for external environmental conditions, it offers reliable electrical and mechanical performance across various industrial uses.
ITT CANNON MS3102E2212S Circular Connector Specifications:
- Shell size: 22
- Contact arrangement: 22-12
- Number of contacts: 2 contacts size 8, 3 contacts size 16
- Contact type: Solder Cup
- Contact plating: Hard silver
- Shell material: Aluminum alloy
- Shell coating: Olive drab chromate over cadmium
- Operating temperature: -55°C to +125°C
- Ingress Protection: IP65 according to DIN 40 050
- Salt spray resistance: 500 hours
- Mating cycles: 500
- Coupling torque: Max 11 Nm / Min 0.8 Nm
- Contact retention: 35N (size 15/15S/16/16S), 80N (size 60/100/8)
- Test voltage: 2500 Vrms
- Insulator resistance: > 1000 MΩ
- Air and creepage paths: Minimum 2.8 mm

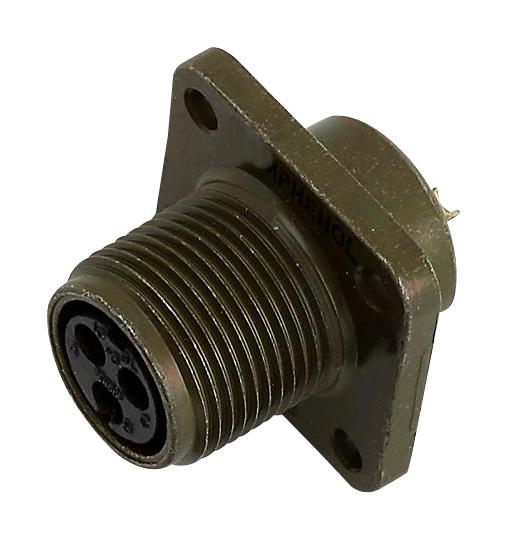

Buy the Cannon Series MIL-C-5015 Circular Connector: MS3102E22-12S
Experience the reliable performance of the Cannon MS3102E22-12S circular connector, ideal for demanding environments requiring IP65 protection. Made from durable aluminum alloy with olive drab chromate coating, it resists salt spray up to 500 hours and withstands temperatures from -55°C to +125°C. Featuring 22-12 contact arrangement with solder cup contacts, it ensures secure electrical connections. Perfect for military, aerospace, and industrial applications, this connector is built for durability, long-term service, and seamless integration in challenging conditions.
Get Cannon MS3102E22-12S today—designed for rugged industrial and military applications with IP65 protection and high salt spray resistance.
Frequently Asked Questions
Where can I buy ITT CANNON MS3102E2212S?
You can click on the BUY or RFQ button to purchase MS3102E2212S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3102E2212S?
You can download the MS3102E2212S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3102E2212S?
ITT CANNON
