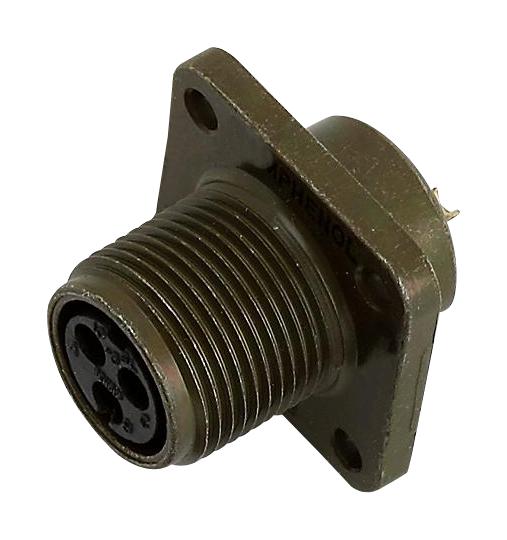

ITT CANNON MS3102R183S Circular Connector
The MS3102R18-3S is a durable circular connector designed for industrial and aerospace applications. It features a threaded coupling, box mounting receptacle shell style, and a socket gender with 18 shell size and 2 solder cup contacts of size 12. Constructed from aluminum alloy with olive drab chromate coating, it offers IP65 protection, salt spray resistance for 500 hours, and withstands over 500 mating cycles. Suitable for voltage applications over 50V, it provides reliable electrical performance in harsh environments with excellent resistance and secure mating features.
ITT CANNON MS3102R183S Circular Connector Specifications:
- Shell Style: Box mounting receptacle
- Shell Size: 18
- Contact Arrangement: 18-3
- Number of contacts: 2 contacts, size 12
- Contact Type: Solder Cup
- Contact Plating: Hard silver
- Operating Voltage: above 50V, compliant with DIN VDE 410, IEC 60364-4-41
- Insulator Resistance: > 1000 MO (VG95319, VG95210)
- Test Voltage: 2500 Vrms
- Air and Creepage Paths: 2.8 mm
- Ambient Temperature: -55°C to +125°C
- Protection Class: IP65 (DIN 40 050)
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500
- Separate Force per Contact: 1.5N
- Shell Material: Aluminum alloy
- Shell Plating: Olive drab chromate over cadmium
- Insulator and Grommet Material: Neoprene
- Contact Material: Copper alloy
- Wire Stripping: 6.2 mm
- Coupling Torque: Max 8 Nm (closing), Min 0.58 Nm (opening)
- Contact Retention: 55N
Buy the Cannon MS3102R18-3S – Reliable Circular Connector for Industrial Applications
Secure your industrial and aerospace connections today with the Cannon MS3102R18-3S circular connector. Featuring a robust aluminum alloy shell with olive drab chromate coating, it provides IP65 rated environmental protection, salt spray resistance for up to 500 hours, and withstands over 500 mating cycles. Designed with solder cup contacts, high insulation resistance, and a compact size, this connector ensures reliable electrical performance under harsh conditions. Shop now for fast online ordering and ensure your projects are equipped with durable, high-quality connectors that deliver consistent, long-lasting performance.
Buy Cannon MS3102R18-3S now and experience reliable sealing, secure coupling, and durable performance in demanding industrial and aerospace environments.
Frequently Asked Questions
Where can I buy ITT CANNON MS3102R183S?
You can click on the BUY or RFQ button to purchase MS3102R183S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3102R183S?
You can download the MS3102R183S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3102R183S?
ITT CANNON
