ITT CANNON MS3106E2029SW Circular Connector
The MS3106E20-29SW is a circular MIL-DTL 5015 series connector featuring a shell size 20, 17 contacts with solder cup termination, and hard silver plating. Designed for rugged environments, it offers IP65 protection, salt spray resistance for 500 hours, and can withstand up to 500 mating cycles. The connector has an aluminum alloy shell with olive drab chromate coating, a neoprene insulator, and a maximum torque closing of 9 Nm to ensure secure locking. Suitable for industrial, military, and aerospace applications, it maintains high performance in extreme temperatures from -55°C to +125°C, with a contact rating at +20°C of FAN, and a test voltage of 1600 Vrms. Certified for safety and durability, it meets or exceeds VG95319 and VG95210 standards.
ITT CANNON MS3106E2029SW Circular Connector Specifications:
- Shell Size: 20
- Number of Contacts: 17 (Size 16)
- Contact Arrangement: 20-29
- Contact Type: Solder Cup
- Contact Plating: Hard silver
- Shell Material: Aluminum alloy
- Shell Coating: Olive drab chromate over cadmium
- Insulator Material: Neoprene
- Operating Temperature: -55°C to +125°C
- Ingress Protection: IP65 according to DIN 40 050
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500
- Test Voltage: 1600 Vrms
- Contact Resistance: 'aan
- Contact Retention: 35N
- Coupling Torque: Closing 9 Nm max / Opening 0.7 Nm min
- Wire Stripping Length: 6.2 mm
- Insulator Rotation: 80°
- Gage Reference: VG95234, part 1
- Gasket Material: Neoprene
- Sealing: IP65 rated

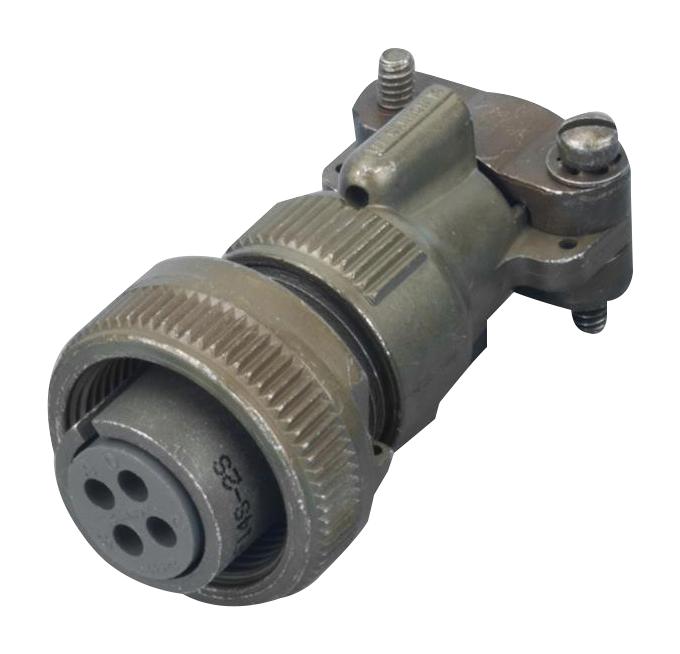

Buy the Buy Cannon Circular MIL-DTL 5015 Connector Part Number MS3106E20-29SW Online
Purchase the Cannon circular connector MS3106E20-29SW online today to enjoy superior durability, excellent environmental sealing, and unmatched performance in tough conditions. Designed for military, aerospace, and industrial applications, this connector features IP65 protection, salt spray resistance for 500 hours, and a rugged aluminum shell with olive drab chromate coating. Its 17 solder cup contacts with hard silver plating provide reliable electrical connections, while the IP65 rating ensures protection against dust and water ingress. Order now for fast delivery, secure locking, and guaranteed quality for your critical projects.
Order your Cannon MS3106E20-29SW high-performance circular connector today and ensure reliable connections in harsh industrial and military environments.
Frequently Asked Questions
Where can I buy ITT CANNON MS3106E2029SW?
You can click on the BUY or RFQ button to purchase MS3106E2029SW from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3106E2029SW?
You can download the MS3106E2029SW datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3106E2029SW?
ITT CANNON
