ITT CANNON MS3106F14S6P MIL-C-5015 Connector
The MS3106F14S-6P is a six-way MIL-C-5015 solder plug connector with silver-plated copper contacts, a coupling thread, end bell, and cable clamp. Designed for high durability, it withstands extreme conditions like high altitude, moisture, condensation, and vibration. Rated for 22A current, it operates from -55°C to +125°C, making it ideal for military, defense, and aerospace applications where reliable and secure connections are critical. Its robust construction ensures consistent performance in demanding environments, complying with MIL standards for quality and durability.
ITT CANNON MS3106F14S6P MIL-C-5015 Connector Specifications:
- Shell Material: Aluminium alloy
- Shell Coating: Olive drab chromate over cadmium plating
- Contact Material: Copper alloy
- Contacts: 6 solder cup, size 16S, plated with hard silver
- Operating Voltage: Rated for high voltage applications, in accordance with DIN VDE 410 and IEC 60364-4-41
- Current Rating: 22A at +20°C
- Insulation Resistance: > 1000 MO per VG95319 and VG95210 standards
- Test Voltage: 1050 Vrms
- Ambient Temperature: -55°C to +125°C
- Gasket Material: Neoprene
- Contact Resistance: Aan (specified in datasheet)
- IP Rating: IP65
- Salt Spray Resistance: 500 hours
- Number of Mating Cycles: 500
- Coupling Torque: Closing maximum 3.6 Nm / Opening minimum 0.35 Nm
- Wire Stripping Length: 6.2 mm
- Enviromental Resistance: Moisture, vibration, and corrosion resistant
- Dimensions and gage details: Refer to catalog VG95234 for specifics

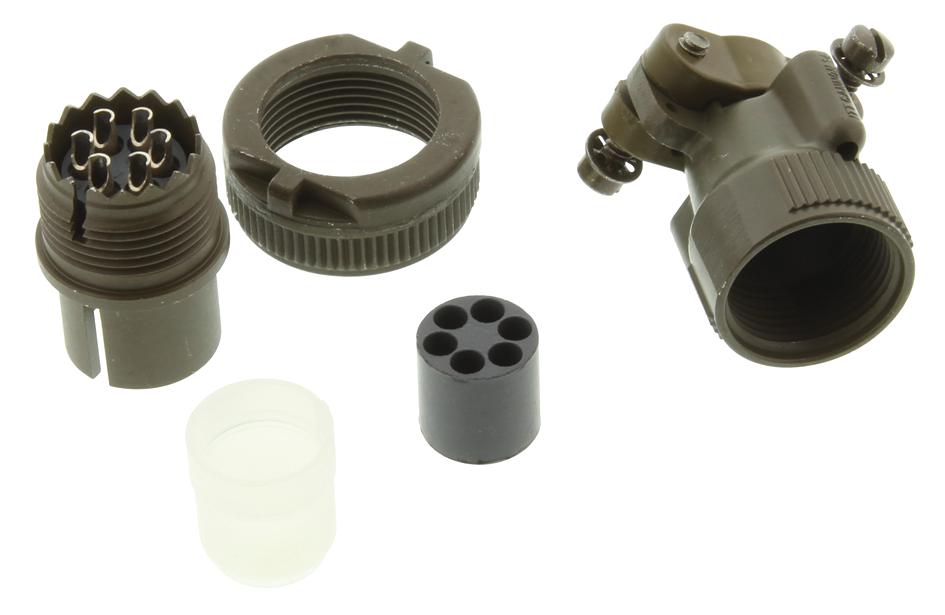

Buy the Buy Cannon MIL-DTL 5015 Series Connector Part Number MS3106F14S-6P Online
Secure your reliability with the Cannon MIL-C-5015 connector MS3106F14S-6P, a six-way solder plug designed for extreme environmental conditions. Crafted from durable aluminium alloy with olive drab chromate coating, it features copper contacts with hard silver plating, ensuring excellent conductivity and corrosion resistance. Rated for 22A, this connector operates from -55°C to +125°C, suitable for aerospace, defense, and industrial applications. Its IP65 rating and salt spray resistance support long-term durability in vibration-prone, moist environments, making it an essential component for high-stakes deployments.
Order your Cannon MIL-DTL 5015 Series MS3106F14S-6P today and ensure reliable high-performance connections in demanding military and aerospace projects.
Frequently Asked Questions
Where can I buy ITT CANNON MS3106F14S6P?
You can click on the BUY or RFQ button to purchase MS3106F14S6P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part MS3106F14S6P?
You can download the MS3106F14S6P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of MS3106F14S6P?
ITT CANNON
